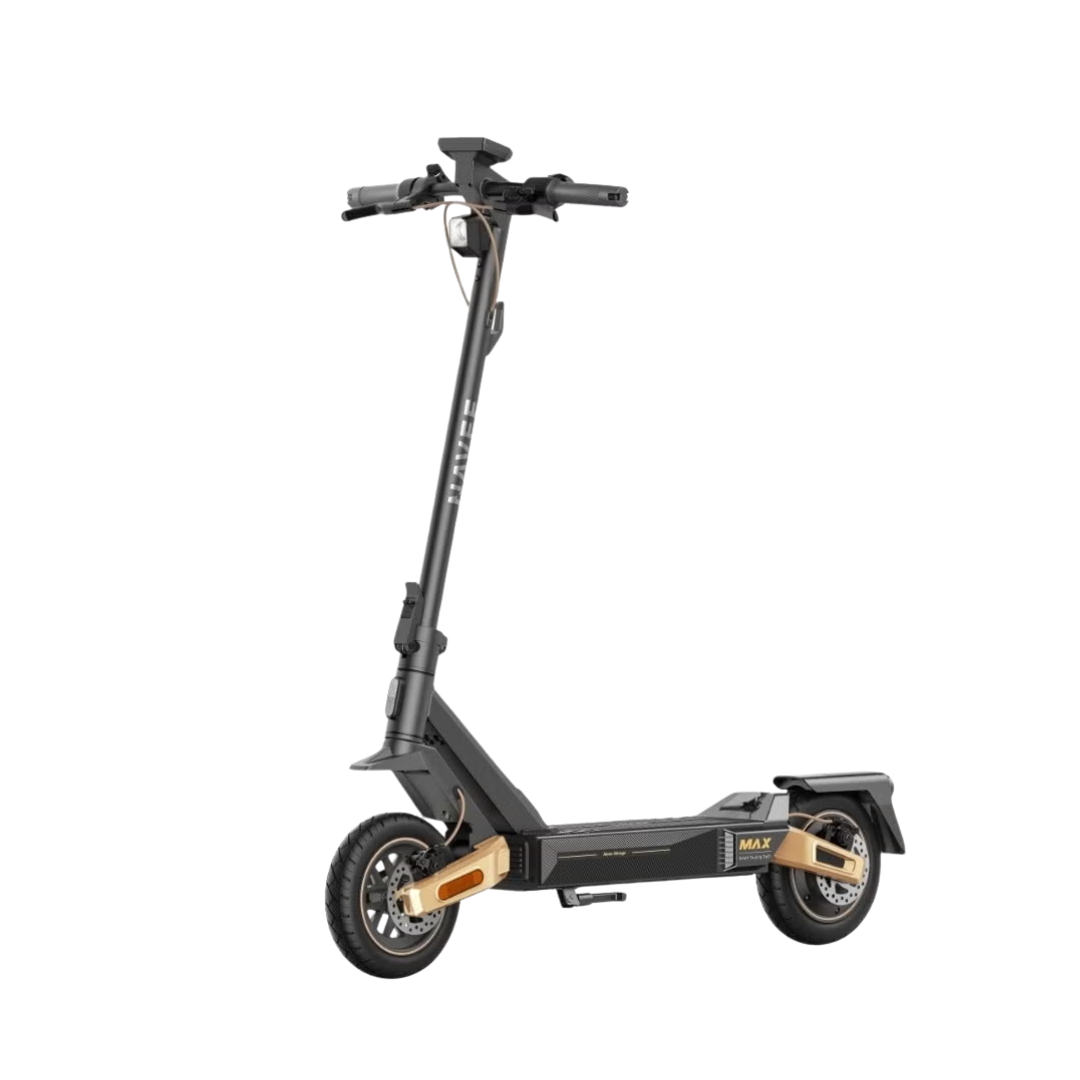

The NAVEE ST5 Max is a high-performance urban electric scooter designed for long-distance commuting, featuring a higher power ceiling and range than the standard and Pro models in the ST series.
- Brand: NAVEE
- Item Name: ST5 Max
Core Performance
- Drive System: Rear-Wheel Drive

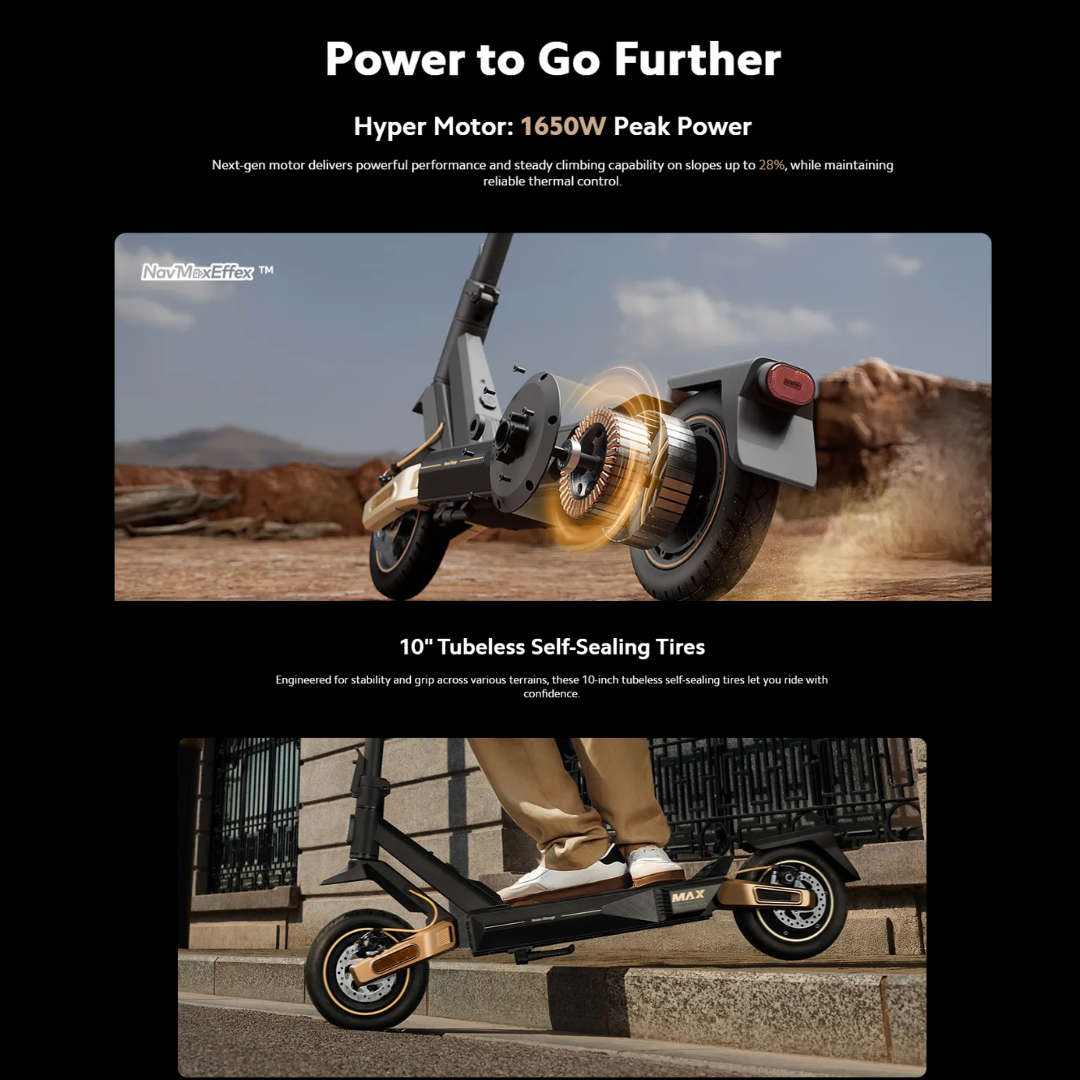

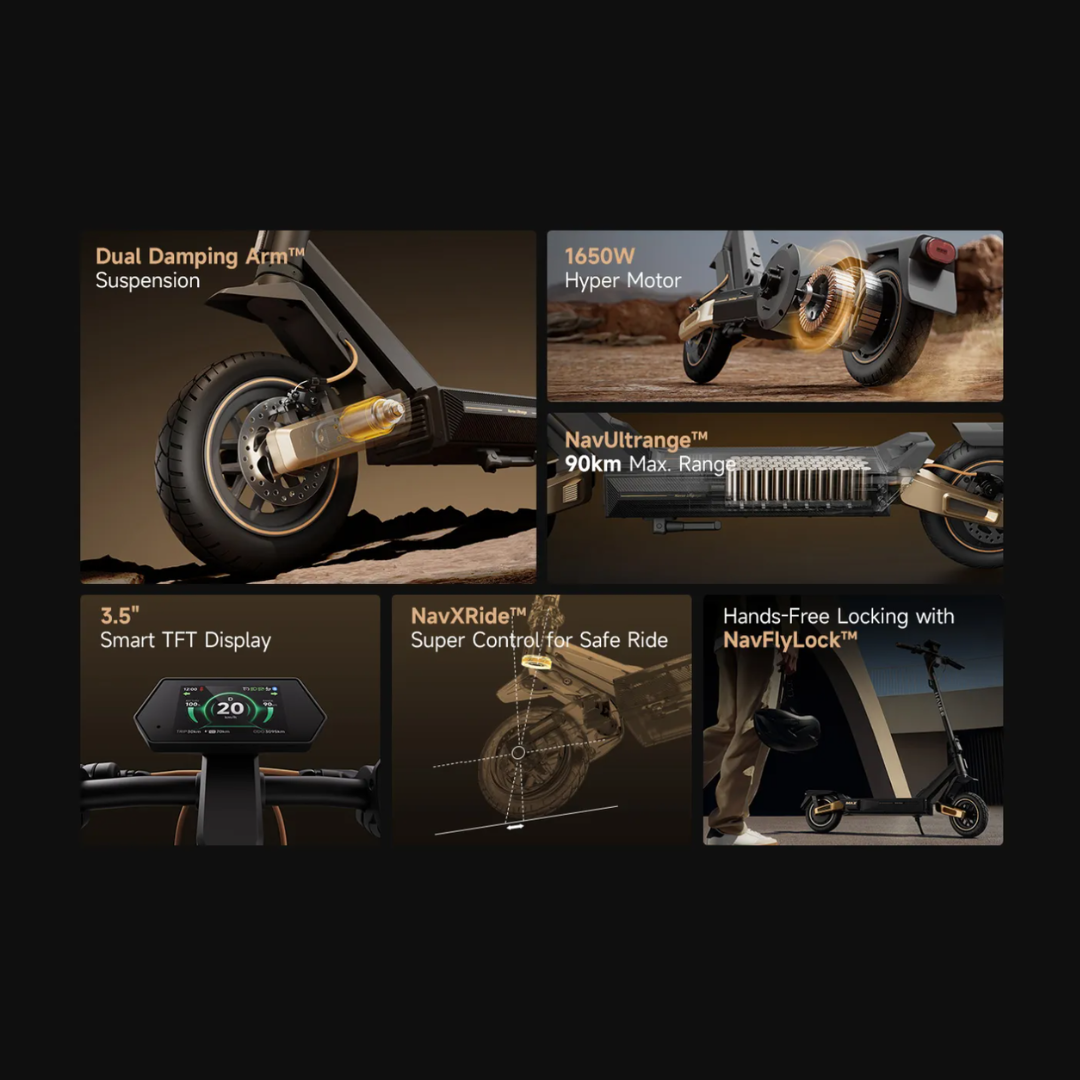

- Peak Power: 1650W (Hyper Motor)
- Rated Power: 600W
- Top Speed: 25 mph (40 km/h) — Note: Software-limited to 25 km/h in certain regions (EU/GCC).
- Max Climbing Angle: Approx. 28% incline
- Traction Control: Built-in TCS (Traction Control System) to prevent wheel slip on wet surfaces.
Range & Battery

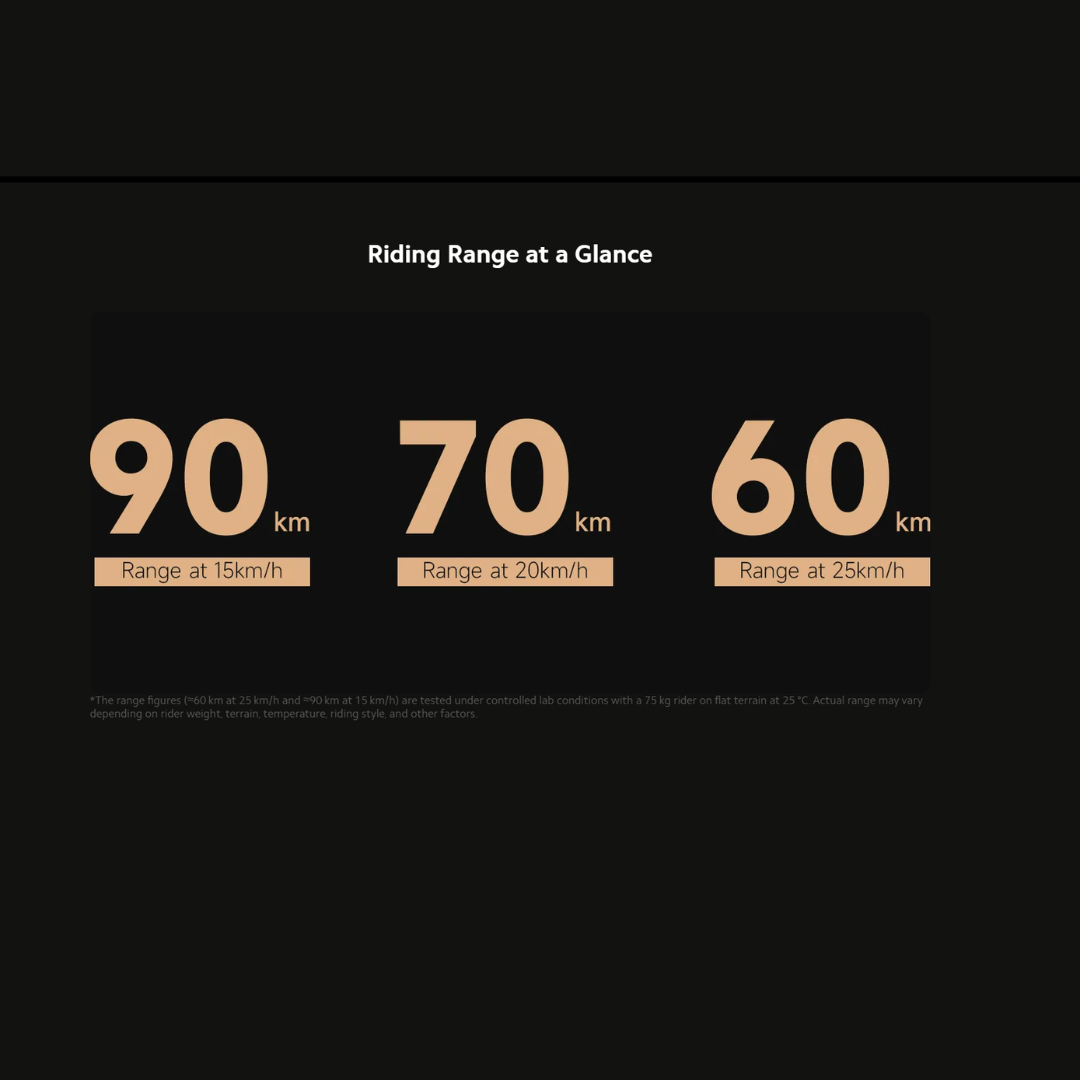

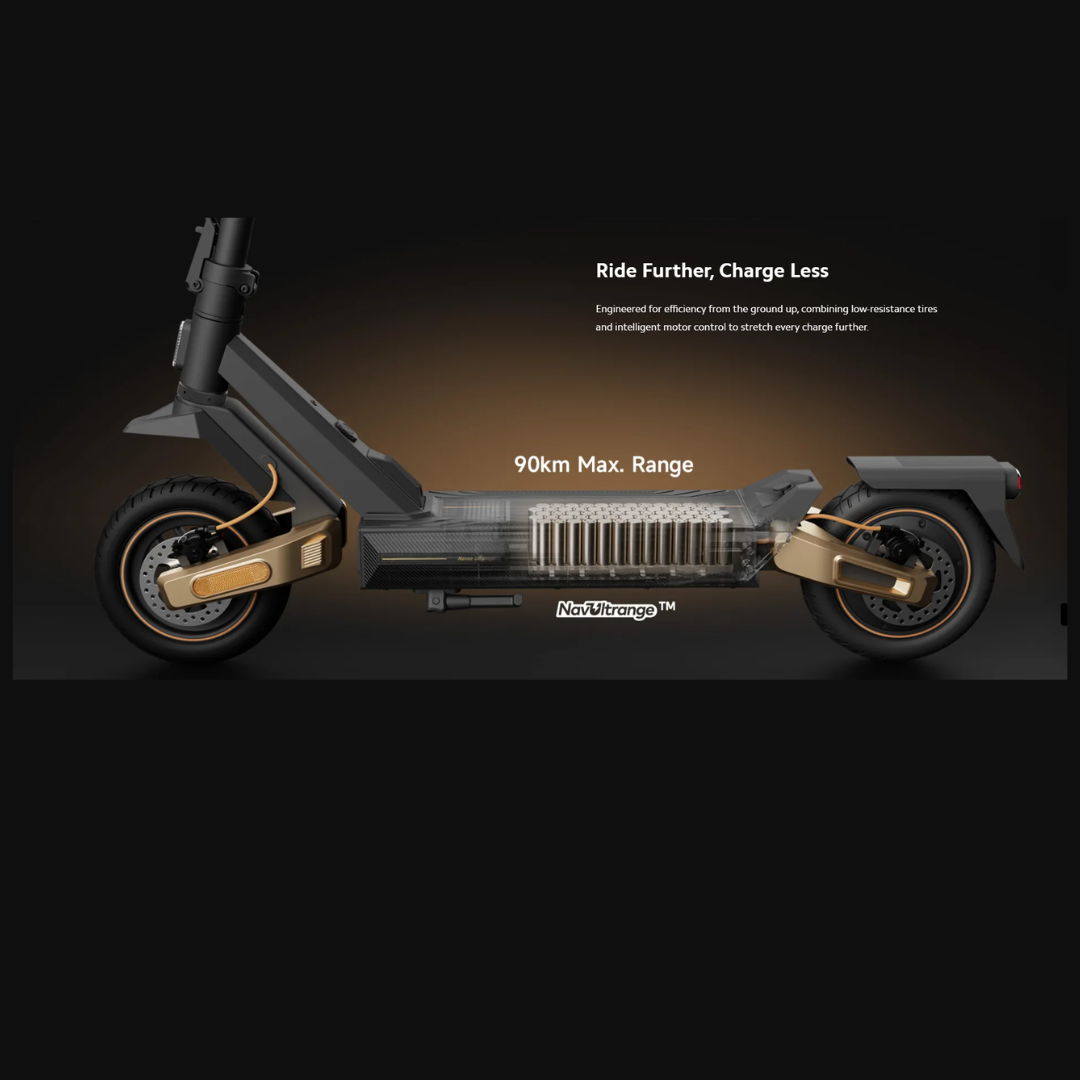

- Max Riding Range: Up to 56 miles (90 km) — Tested at 15 km/h; real-world range at higher speeds is approx. 65 km.
- Battery Capacity: 46.8V 12.75Ah (596.7 Wh)
- Charging Time: Approx. 6 hours
- Battery Management: 6-layer Intelligent BMS (Over-heating, short circuit, and over-charge protection).
Chassis & Comfort

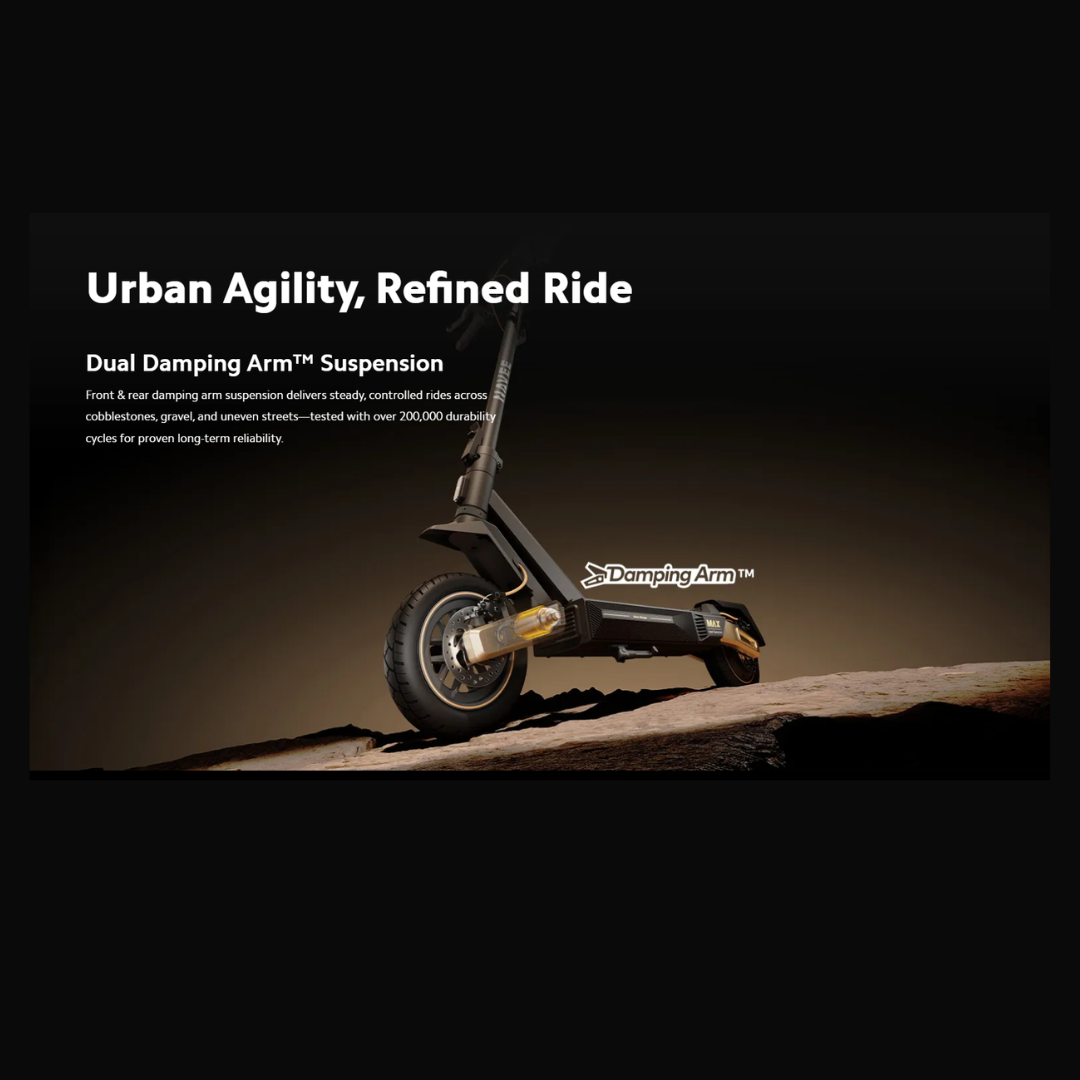

- Suspension: Dual Damping Arm Suspension System (Front and Rear)
- Tires: 10-inch Tubeless Pneumatic Tires

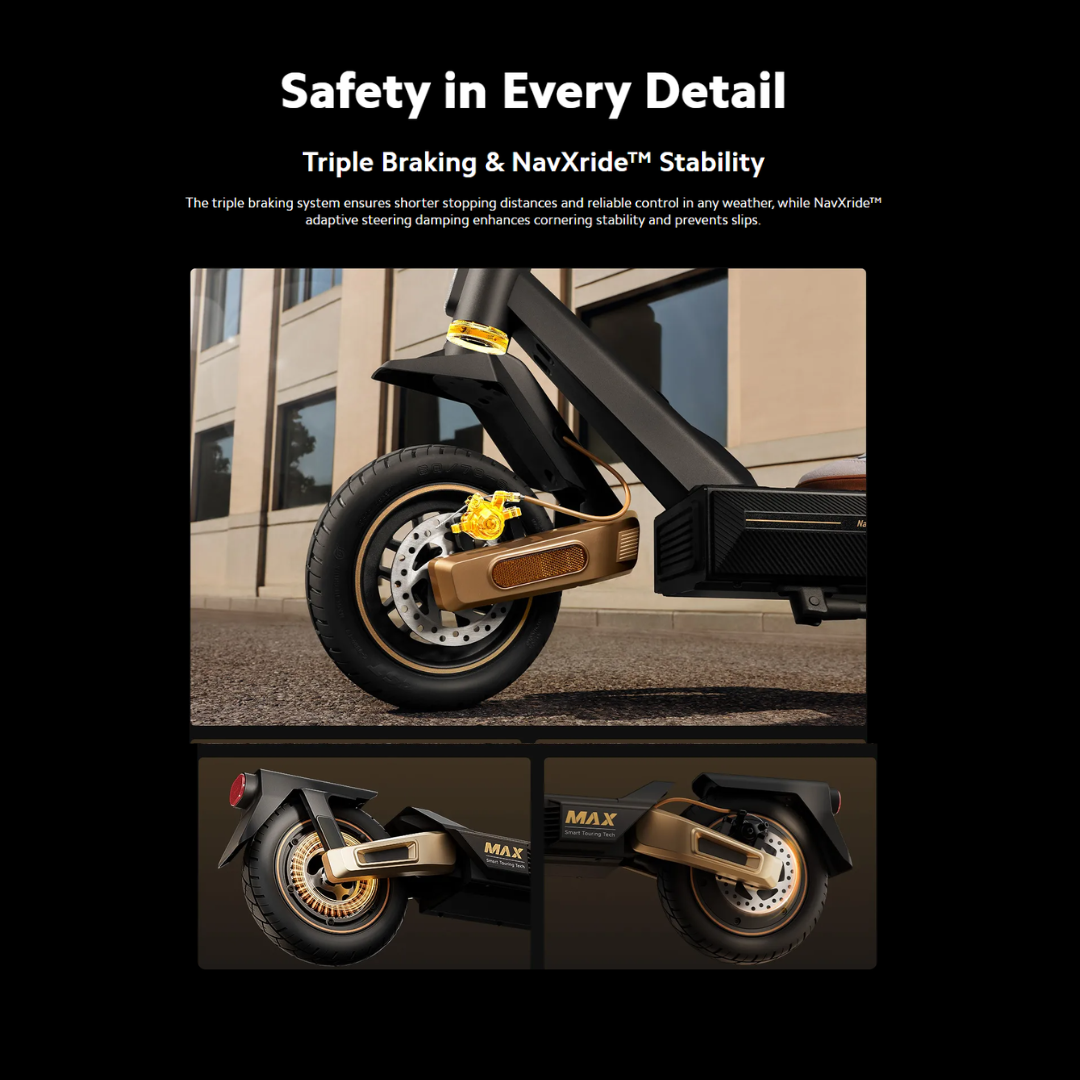

- Braking: Triple Braking System (Front Disc + Rear Disc + EABS)
- Deck Width: 195mm (Spacious footboard for stability)

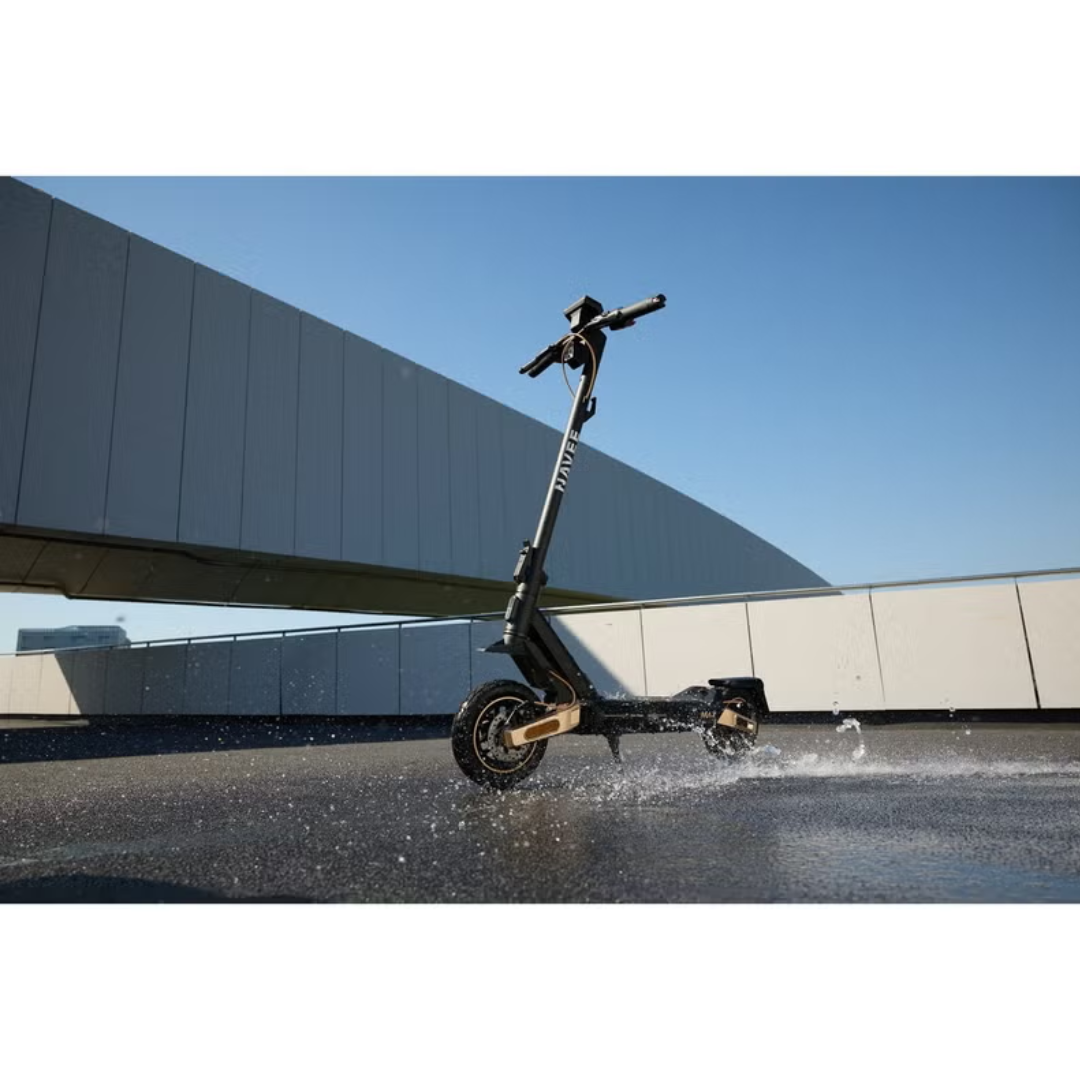

- Water Resistance: IPX6 (High-pressure water jet resistant)
Dimensions & Weight
- Net Weight: 53.8 lb (24.4 kg)
- Max Payload: 330 lb (150 kg)
- Unfolded Dimensions: 1195 × 600 × 1280 mm
- Folded Dimensions: 1195 × 610 × 560 mm
Smart Tech & Safety

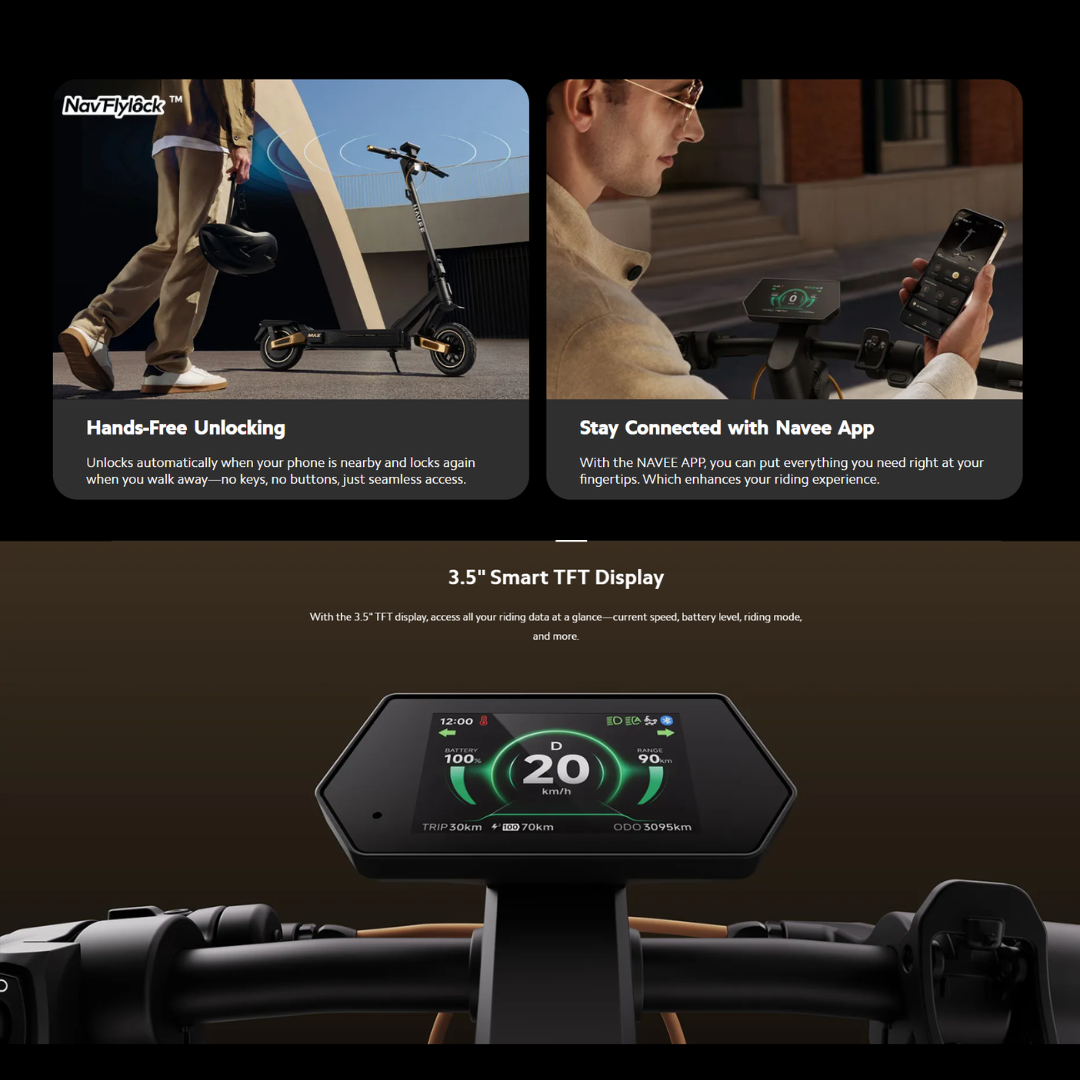

- Display: 3.5-inch Smart TFT Display
- Tracking: "Apple Find My" support (iOS integration for locating the scooter)

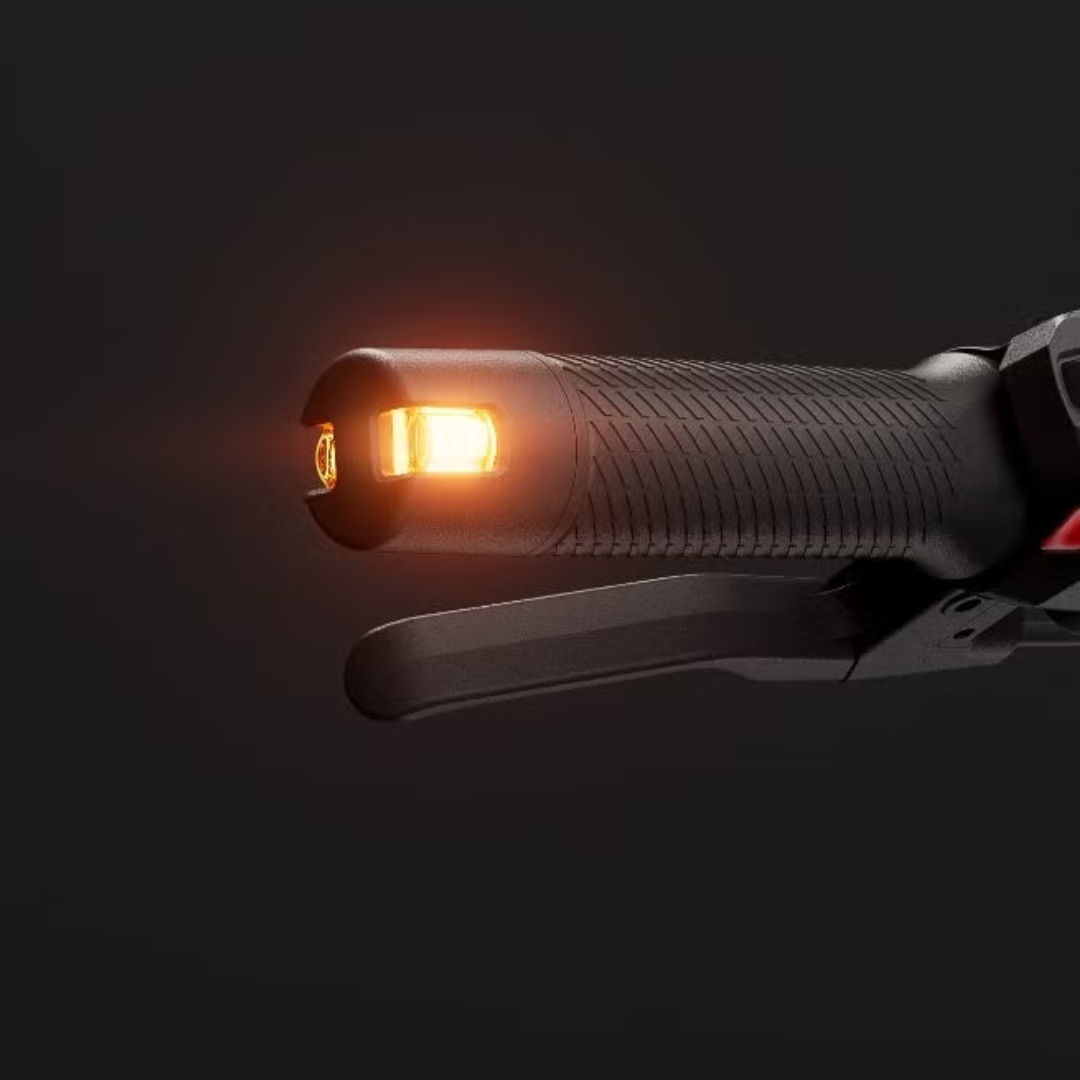

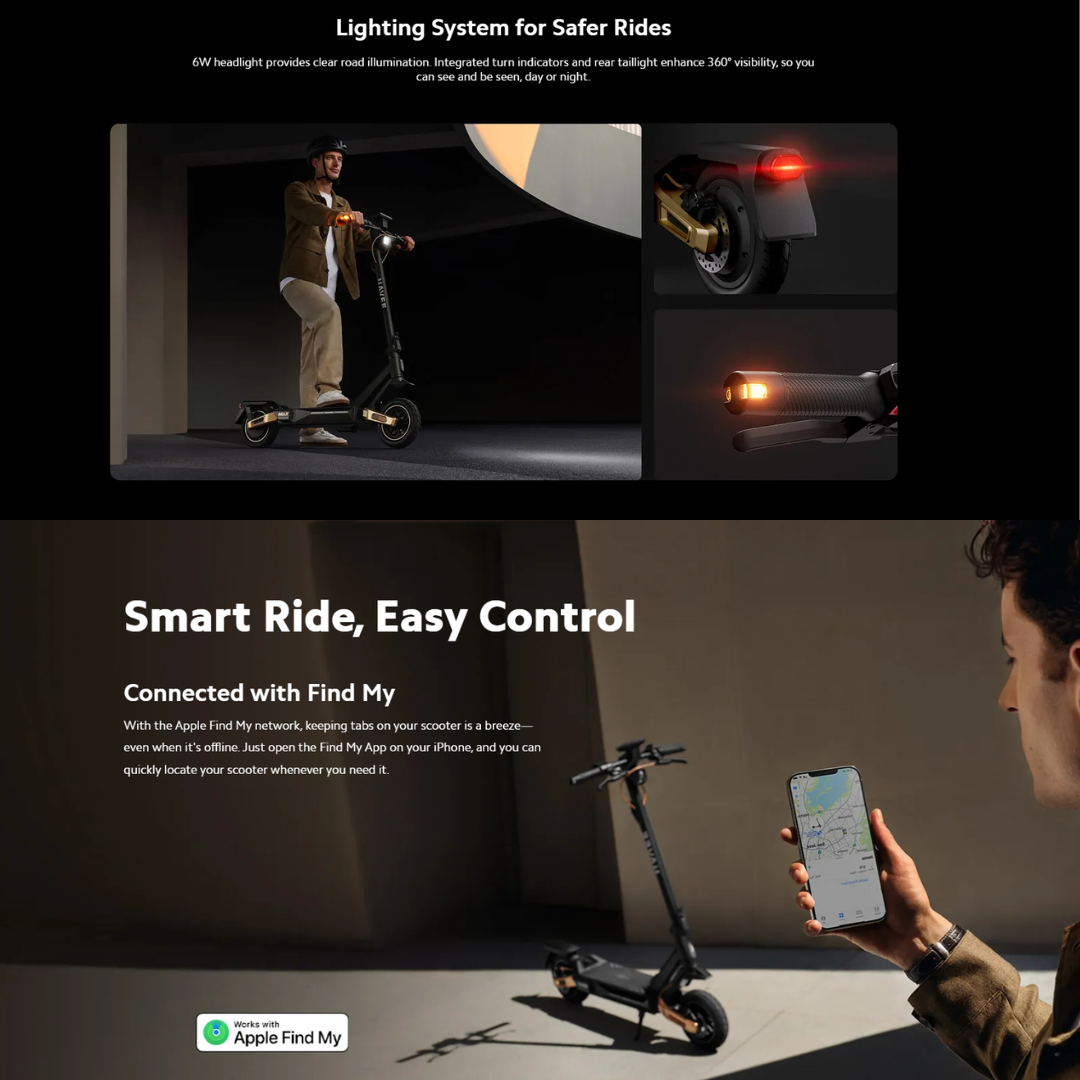

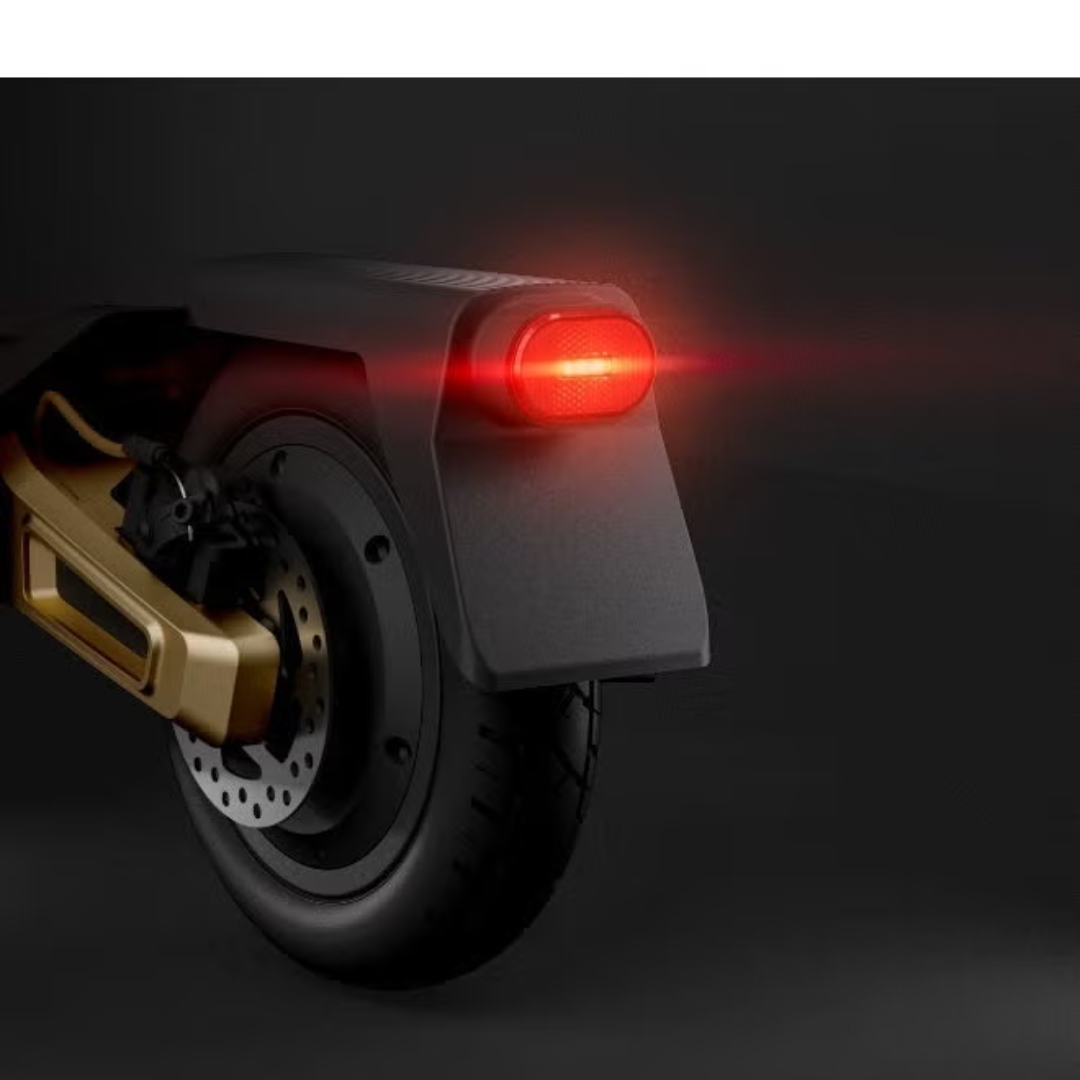

- Lighting: 4W Auto-Sensing Headlight, Rear Brake Light, and Integrated Turning Indicators
- Security: NavFlyLock™ Technology (App-based locking)
