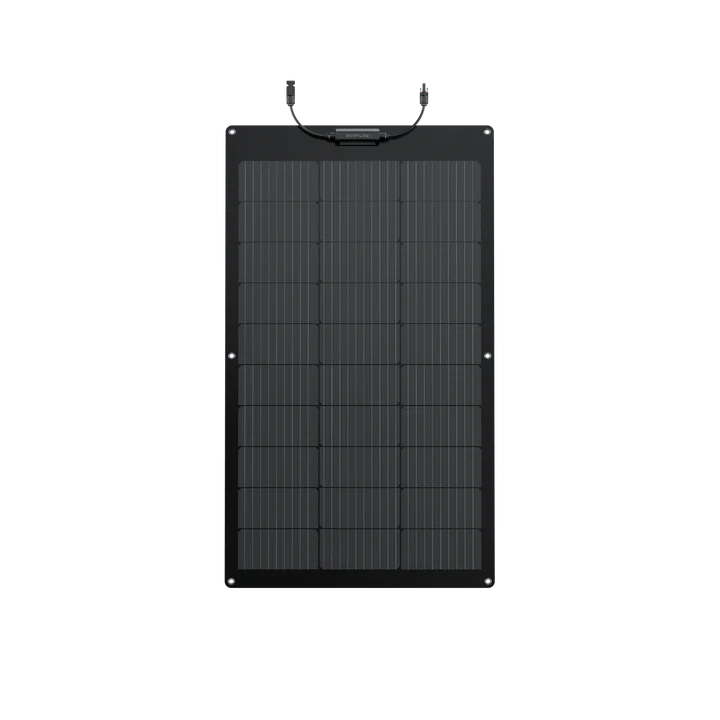

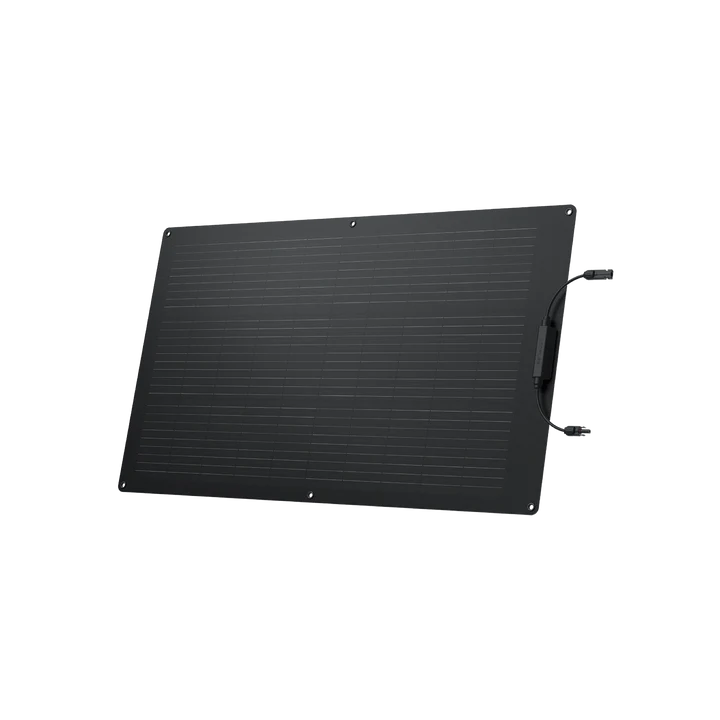

EcoFlow 100W Flexible Solar Panel

EcoFlow 100W Flexible Solar Panel

Key Features:

1. Ultra-Lightweight & Flexible Design:

   • Weighs only 5.1 lbs (2.3 kg), making it 70% lighter than traditional solar panels for easy portability and installation.

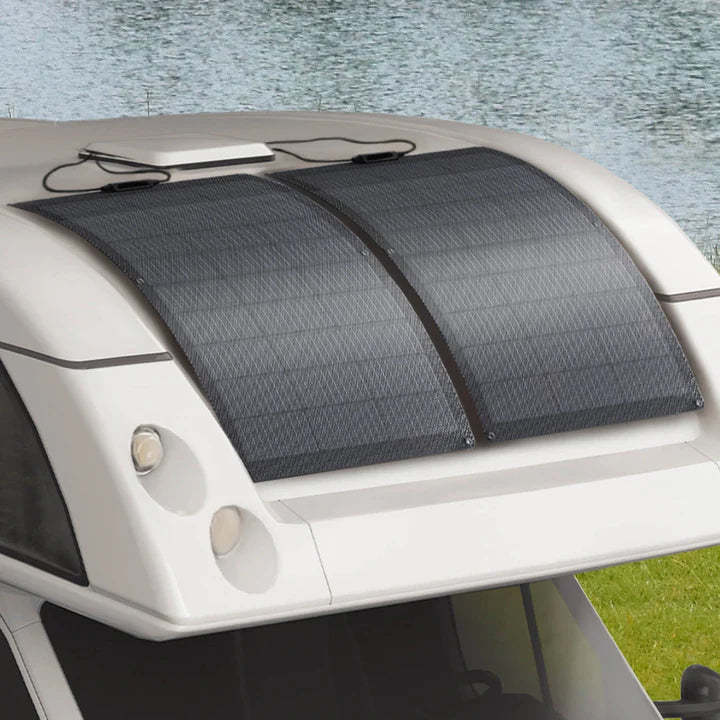

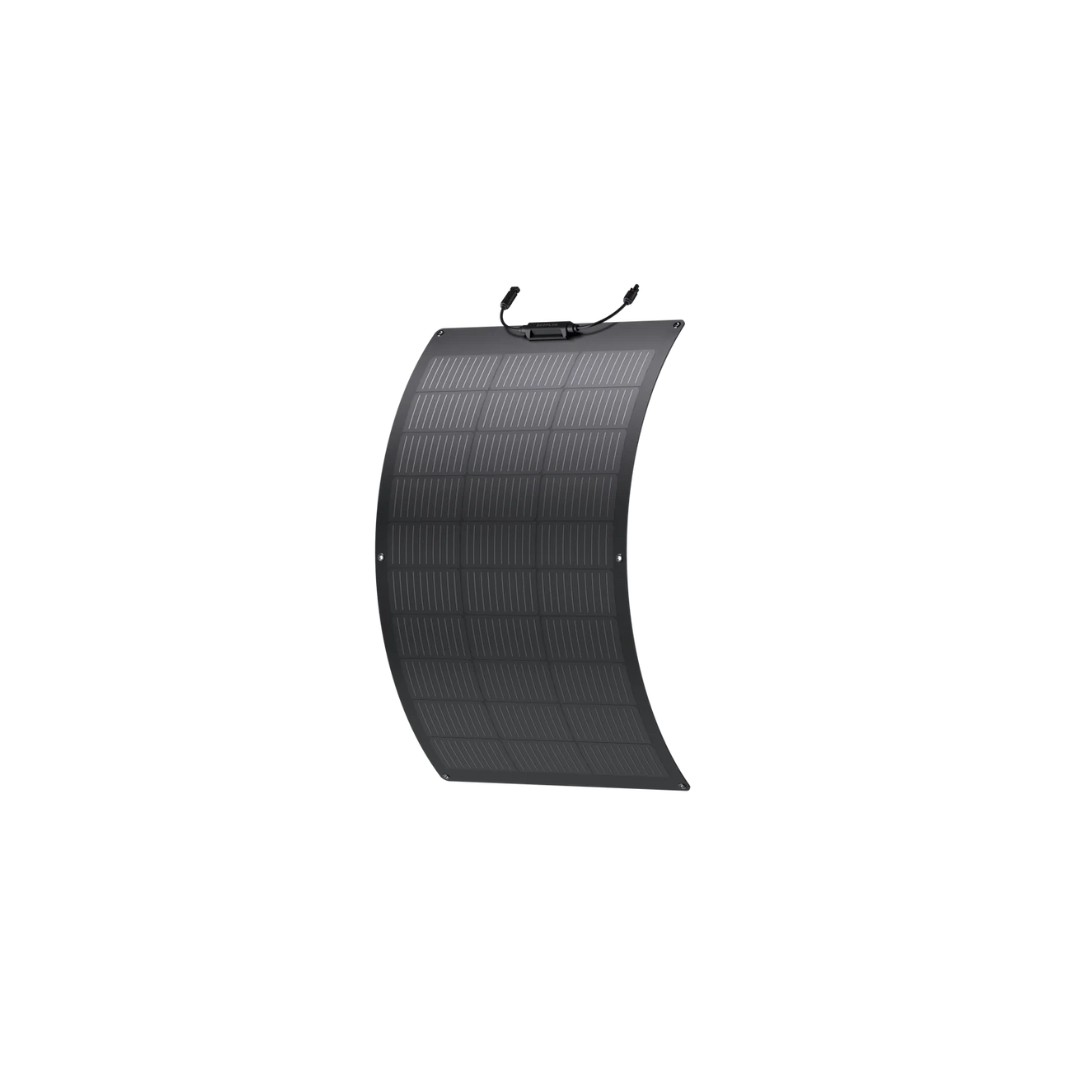

   • 258° flexibility, allowing it to contour seamlessly to curved surfaces like van roofs or RVs without compromising on solar input.

2. Durable, Weather-Resistant Build:

   • IP68 waterproof rating ensures it withstands a range of weather conditions, from heavy rain to dry climates.
   • Built with a protective ETFE coating and advanced glass fiber lamination, adding durability to the 182 monocrystalline silicon cells for enhanced performance.

3. Efficient Solar Conversion:

   • High 23% conversion efficiency for fast and reliable charging.
   • Integrated bypass diodes prevent overheating, allowing optimal performance even in partially shaded areas.

4. Versatile Installation Options:

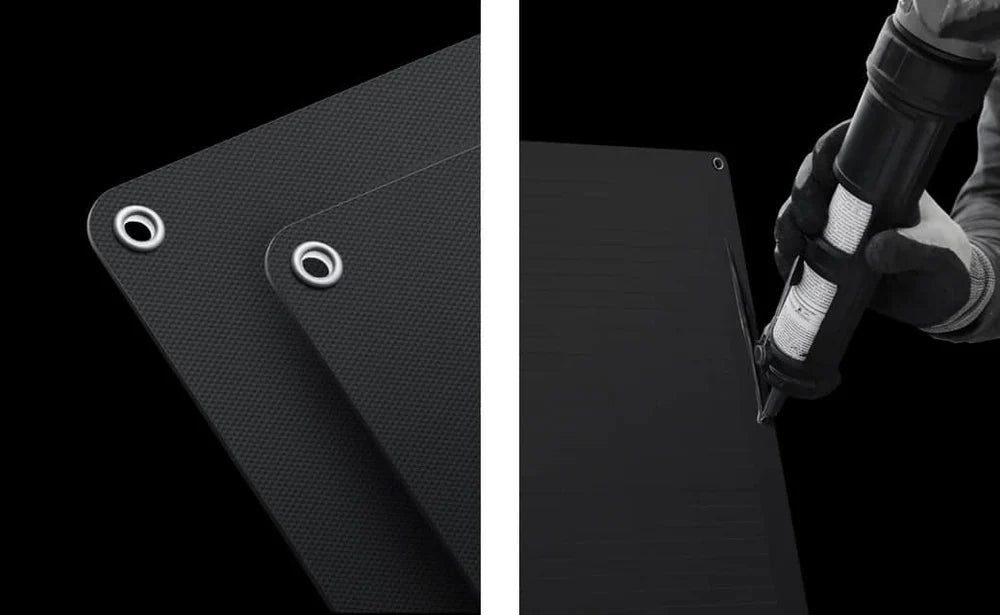

   • Includes pre-cut eyelets for multiple installation options—hang with hooks or secure with adhesive to fit a variety of surfaces.

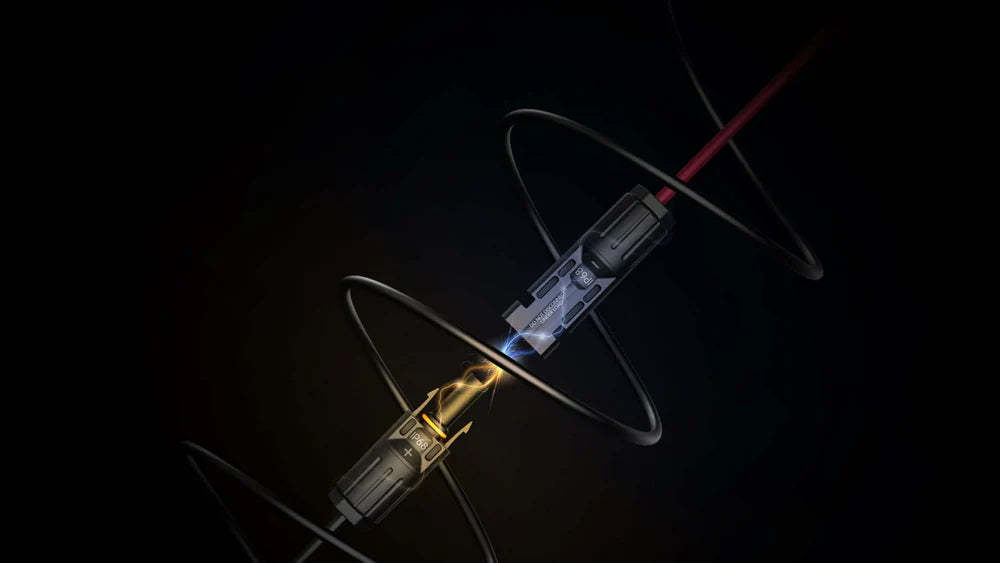

   • Comes with a 3.3 ft (1 m) solar cable compatible with EcoFlow power stations and most 48V power systems.

5. Optimized Power Management:

   • Works seamlessly with EcoFlow’s MPPT algorithm to optimize solar input and maximize charging efficiency in various lighting conditions.

Specifications:

• Warranty: 1 year

• Rated Power: 100W (+/-5W)

• Open Circuit Voltage (Voc): 20.3V

• Short Circuit Current (Isc): 6.3A

• Maximum Operating Voltage (Vmp): 17.1V

• Maximum Operating Current (Imp): 5.9A

• Temperature Coefficients:

  • Rated Power: -0.39%/°C
  • Open Circuit Voltage: 0.33%/°C
  • Short Circuit Current: 0.06%/°C

• Maximum System Voltage: 600 VDC (UL)

• Maximum Fuse Current: 15A

• Weight: Approximately 2.3 kg (5.1 lbs)

• Dimensions: 1055 x 612 x 25 mm

What’s Included in the Box:

1. 100W Flexible Solar Panel
2. User Manual and Warranty Card

Note: The Solar to XT60i charging cable is not included in this bundle.
