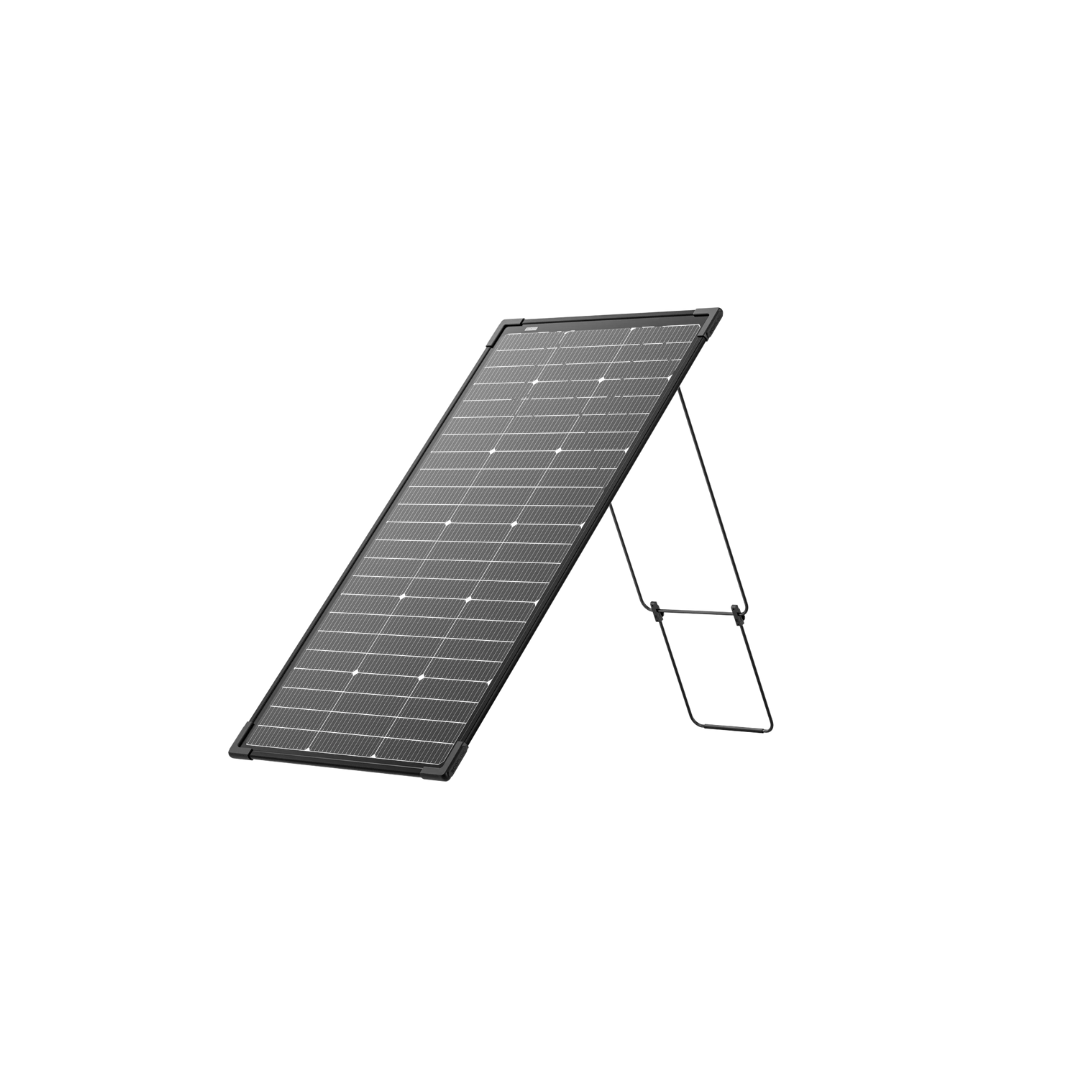

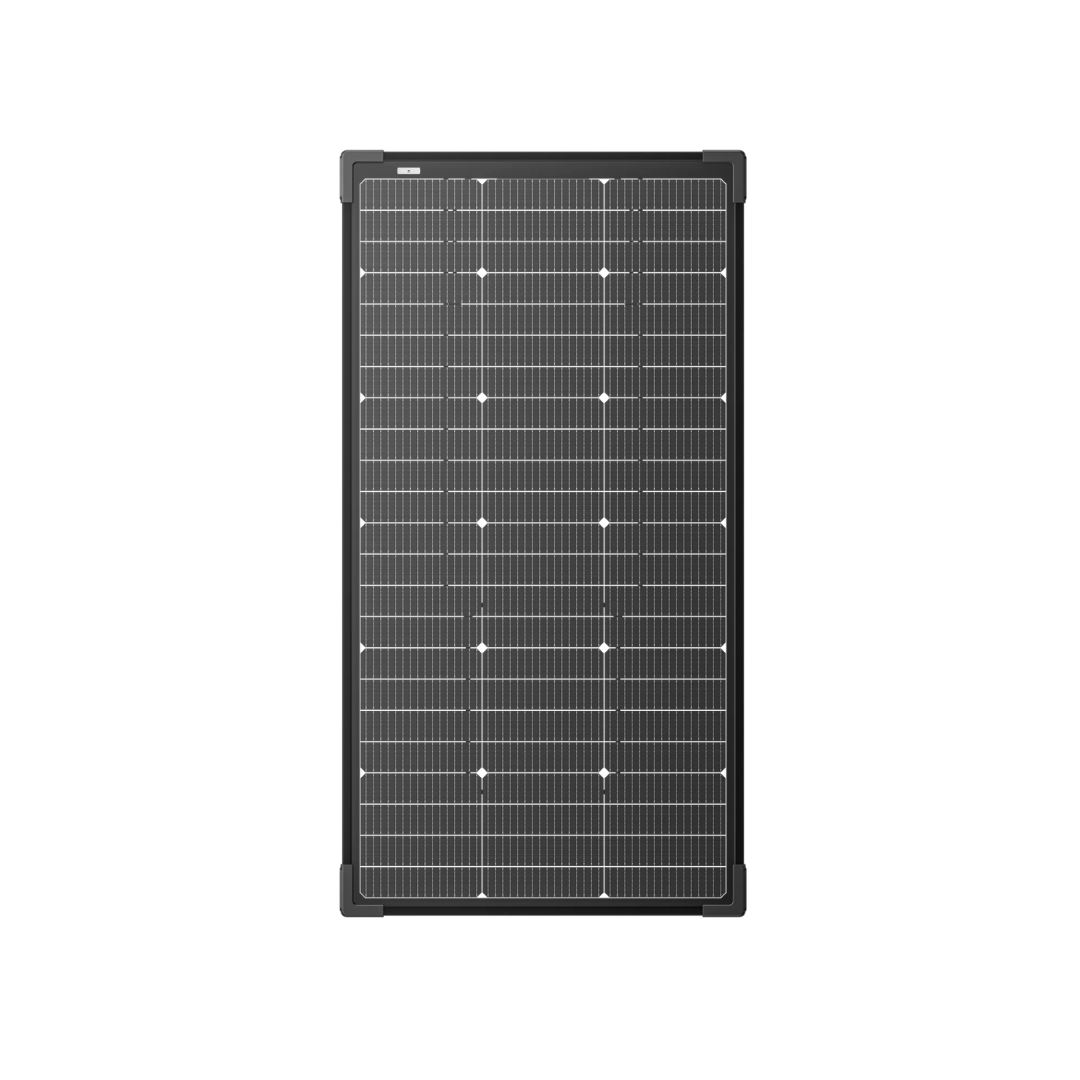

EcoFlow 125W Bifacial Modular Solar Panel
RM1,399.00 MYR
Shipping calculated at checkout.
Quantity
Low inventory
| Category | Specifications |
|---|---|
| Brand | EcoFlow |
| Product Name | 125W Bifacial Modular Solar Panel |
| Rated Power | STC: 125W (±3W), BNPI: 138W (±3W) |
| Open Circuit Voltage | 50V |
| Short Circuit Current | STC: 3.2A, BNPI: 3.4A |
| Optimal Operating Voltage | 43V |
| Optimal Operating Current | STC: 3A, BNPI: 3.2A |
| Efficiency | 25% |
| Bifaciality Coefficient | 80% ±5% |
| Weight | Approx. 4.2 kg (9.26 lbs) per panel |
| Dimensions (L×W×H) | 612 × 1154 × 22 mm (24.1 × 45.4 × 0.87 in) |
| Cell Type | TOPCon monocrystalline silicon |
| Connector Type | XT60 (IP68 waterproof) |
| Waterproof Rating | IP68 (panel & connector) |
| Operating Temperature | -40°C to 85°C (-24°F to 185°F) |
| Maximum System Voltage | 600V DC (IEC/UL) |
| Warranty | 5 years |
| Lifespan | 30 years (90% power retention) |

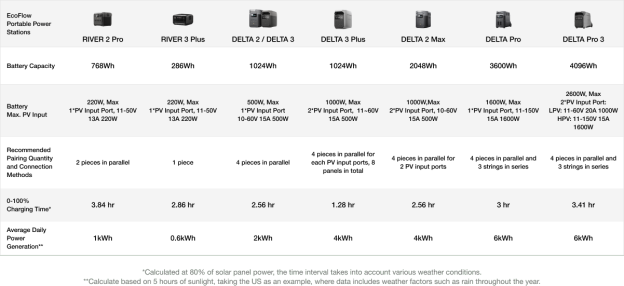

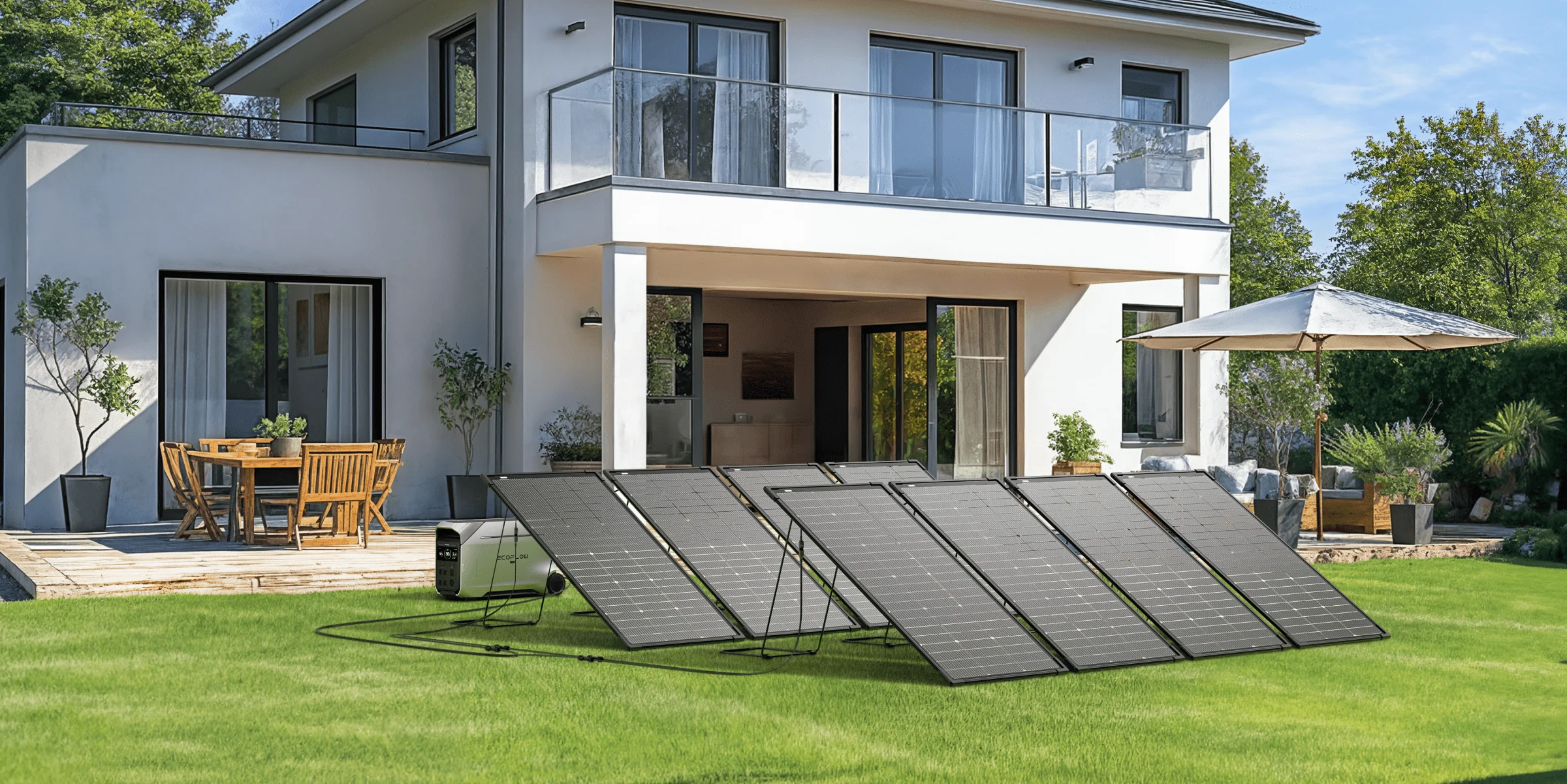

| Modular Expandability | Up to 8 panels (1000W max) in parallel |
| Adjustable Tilt Angle | 30°–60° for optimal sun alignment |
| Key Features |
Bifacial design, lightweight, plug-and-play, weather-resistant, high efficiency |
Warranty: 2 years
Note: Warranty covers manufacturing defect for product will only be valid with proof of purchase and product
serial number
