EcoFlow 800w Alternator Charger

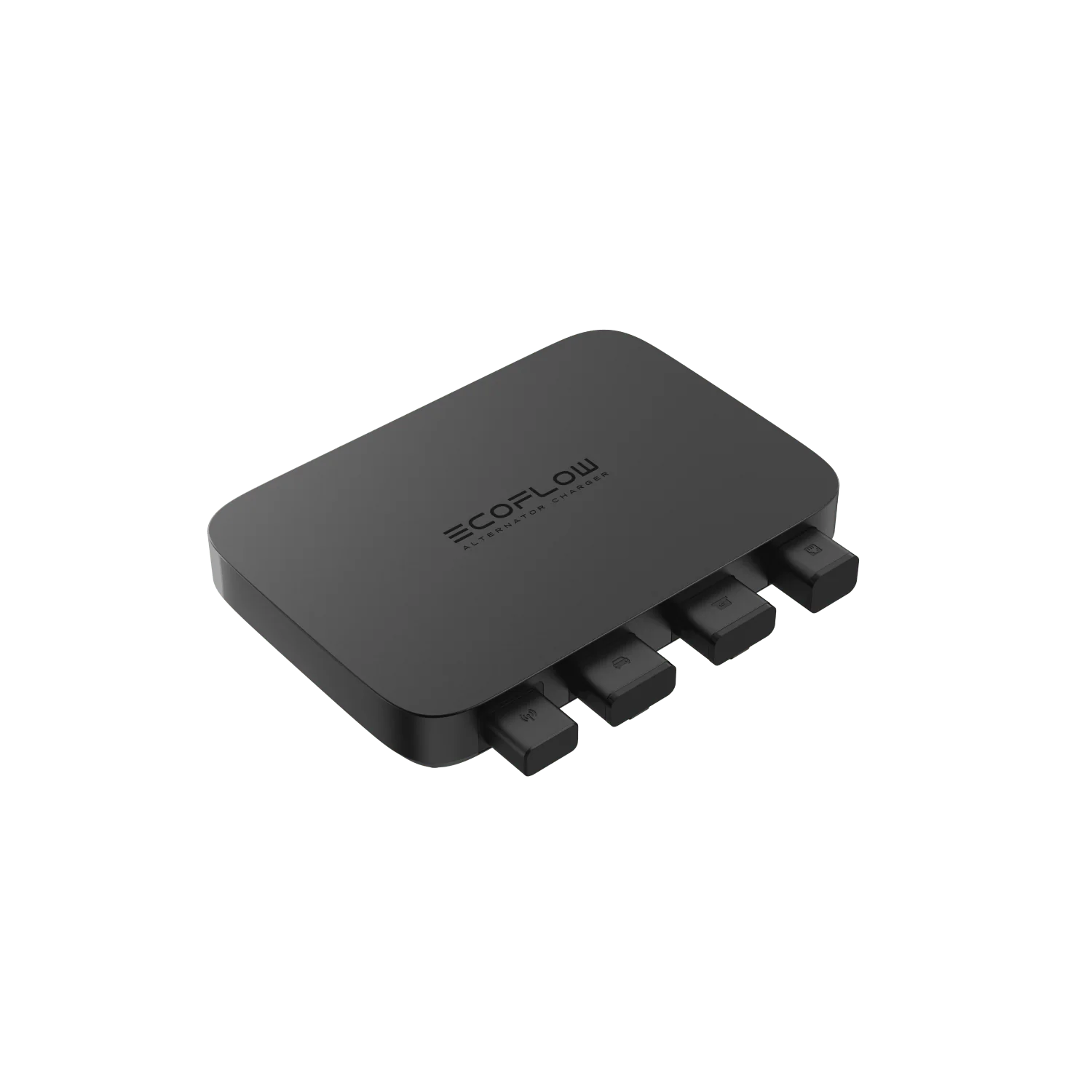

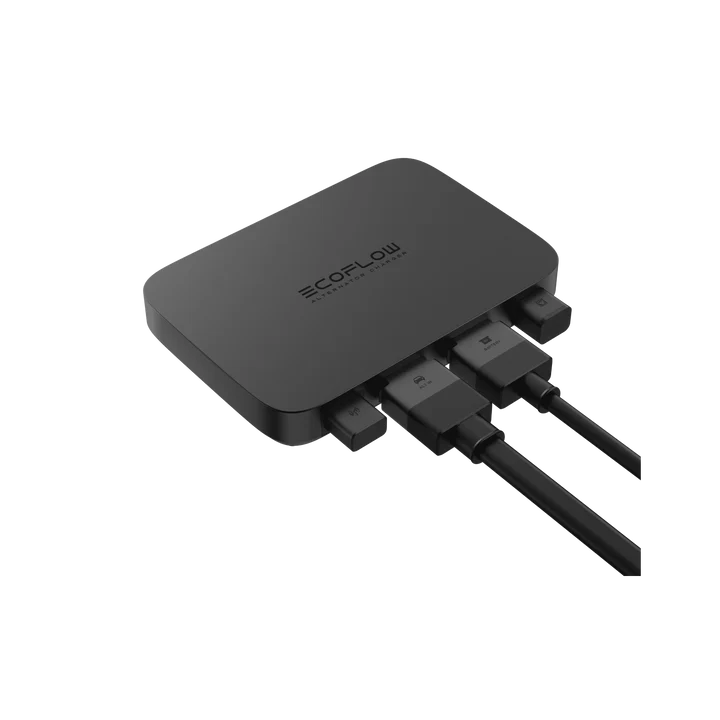

EcoFlow 800W Alternator Charger

Key Features:

1. High-Speed Charging:

   • Turbo-charges power stations with 800W power output, up to 8× faster than standard in-vehicle power outlets.
   • Top up 1kWh in only 1.3 hours, making it ideal for keeping your power station charged while on the go.

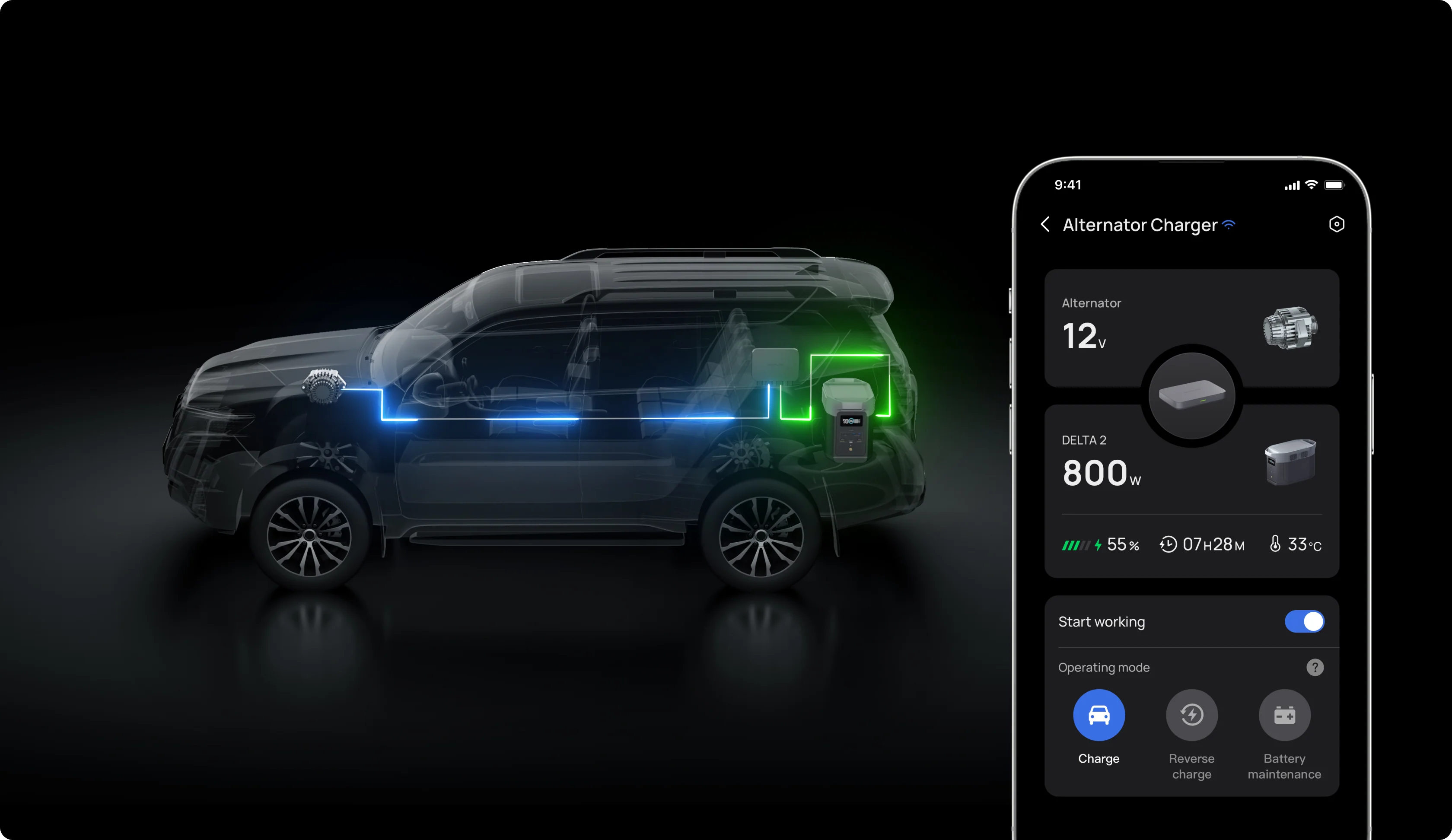

2. 3-in-1 Multi-Functionality:

   • Fast Charger: Refuel your EcoFlow portable power station.
   • Battery Maintainer: Keeps your car or RV battery in optimal condition.
   • Jump Starter: Provides a reliable boost for your battery when needed.
   • Compatible with various vehicles, including SUVs, pickups, and RVs.

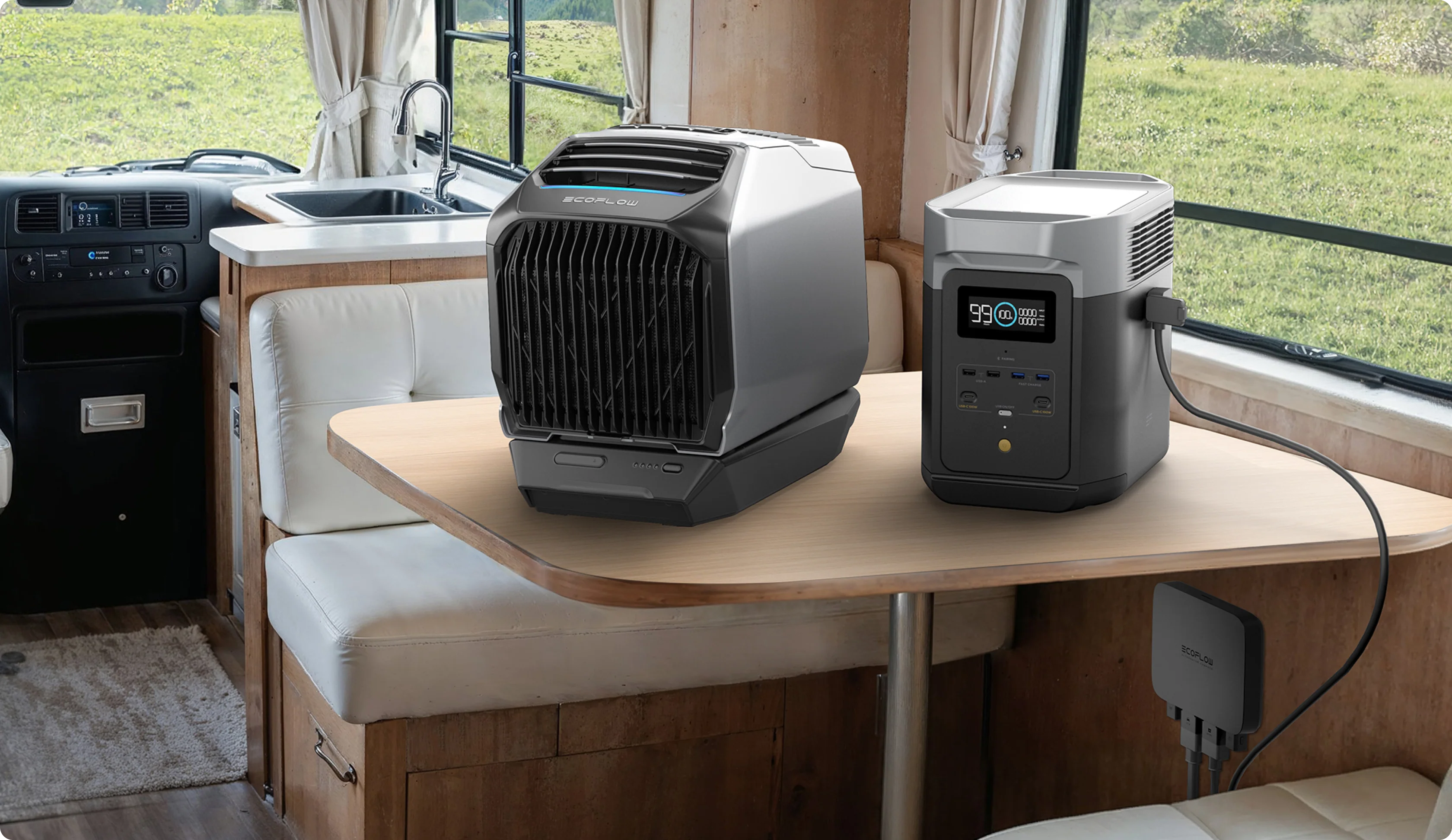

3. Expand Energy Storage for RVs:

   • Supports 12V/24V RV house batteries, adding up to 7.2kWh of power when paired with EcoFlow’s DELTA Pro and Extra Battery.

4. Robust Safety Features:

   • Safety protections include reverse polarity, overcurrent, short circuit, overvoltage, and undervoltage protection.
   • Gallium Nitride (GaN) technology provides efficient and safe power transfer, with high thermal resistance for enhanced safety.

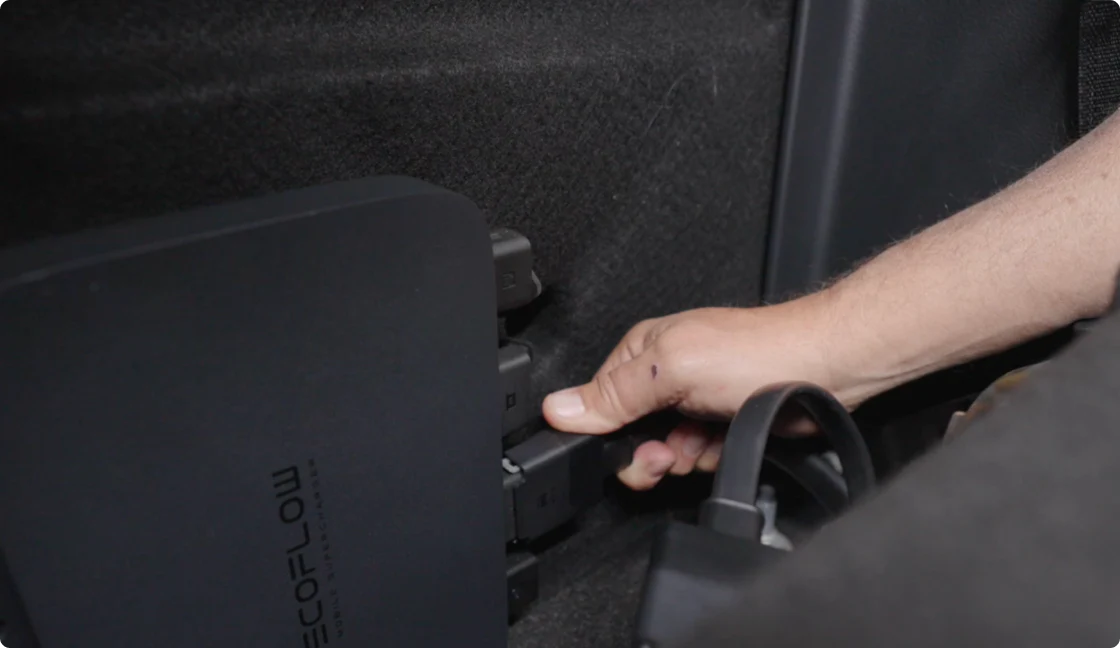

5. Clean and Easy Installation:

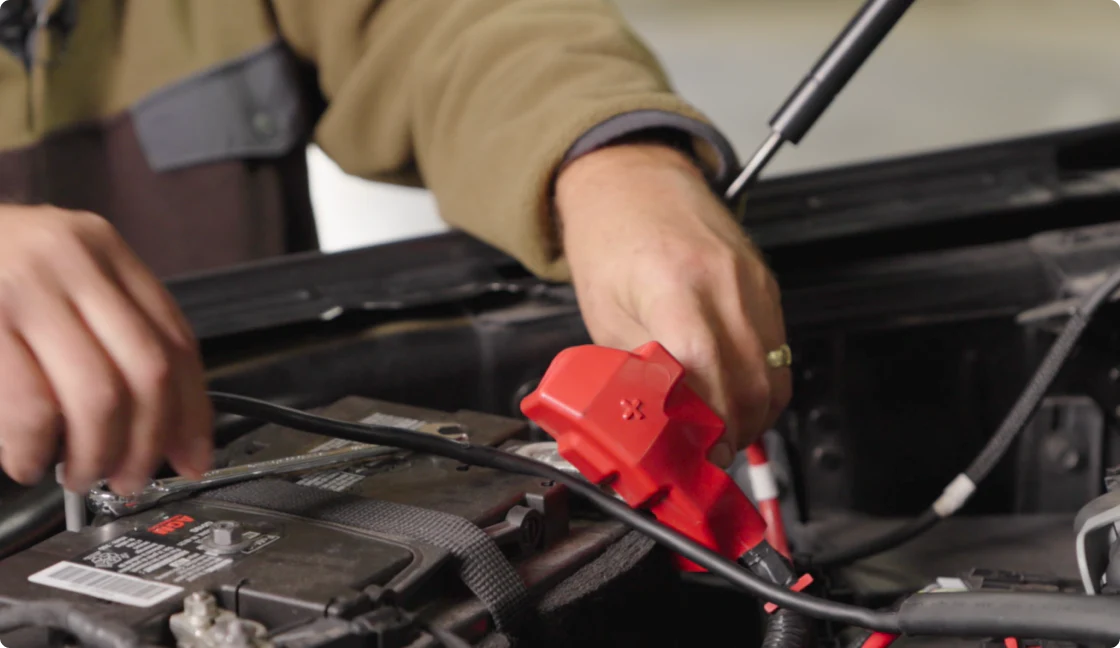

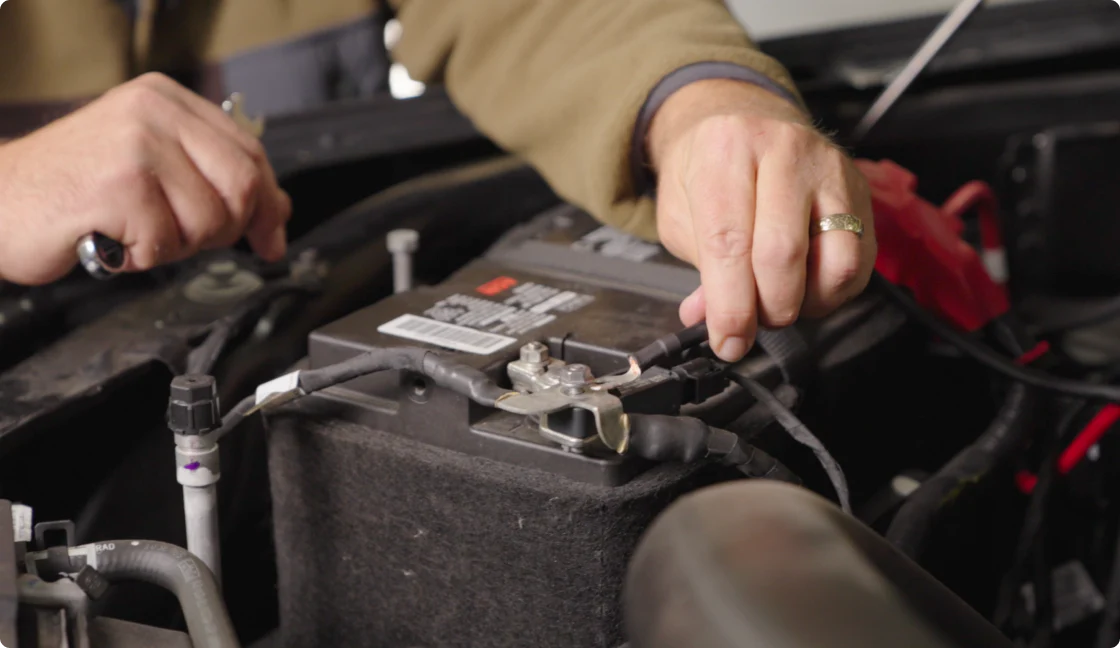

   • Quick, straightforward setup without leaving any marks, allowing you to connect directly to your vehicle’s starter battery or RV’s house battery.
   • Comes with a full installation kit, including necessary cables, nuts, and fuse.

Compatible EcoFlow Power Stations & Charging Times:

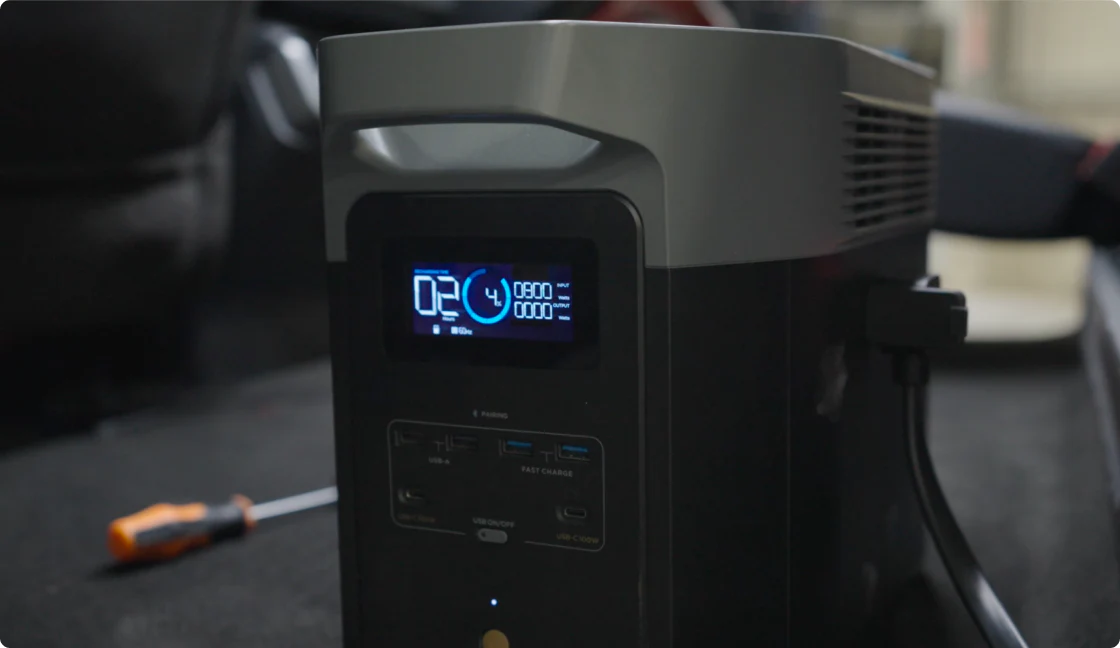

• DELTA Pro: 3600Wh, 4.5 hours (via XT150 Port)
• DELTA 2 Max: 2048Wh, 2.5 hours
• DELTA Max 2000: 2016Wh, 2.5 hours
• DELTA 2: 1024Wh, 1.3 hours
• DELTA 2 Extra Battery: 1024Wh, 1.3 hours
• DELTA 2 Max Extra Battery: 2048Wh, 2.6 hours

Specifications:

• Model: EF-FC-301-1
• Net Weight: 4.9 lb (2.2 kg)
• Dimensions: 242 × 194 × 35 mm
• Charging Mode:
  • Input: 11V-35V, 76A Max.
  • Output: 40V-60V, 800W Max.
• Battery Maintenance Mode:
  • Input: 40V-60V, 3A Max.
  • Output: 13.8V/27.6V, 100W Max.
• Reverse Charging Mode:
  • Input: 40V-60V, 21A Max.
  • Output: 13.8V/27.6V, 800W Max.
• Fuse’s Rated Current: 125A
• Protection Type: Reverse polarity, overcurrent, short circuit, overvoltage, undervoltage
• Operating Temperature: –20°C to 60°C
• Storage Temperature: –30°C to 70°C
• Operating Humidity: ≤95%
• Storage Humidity: ≤95%

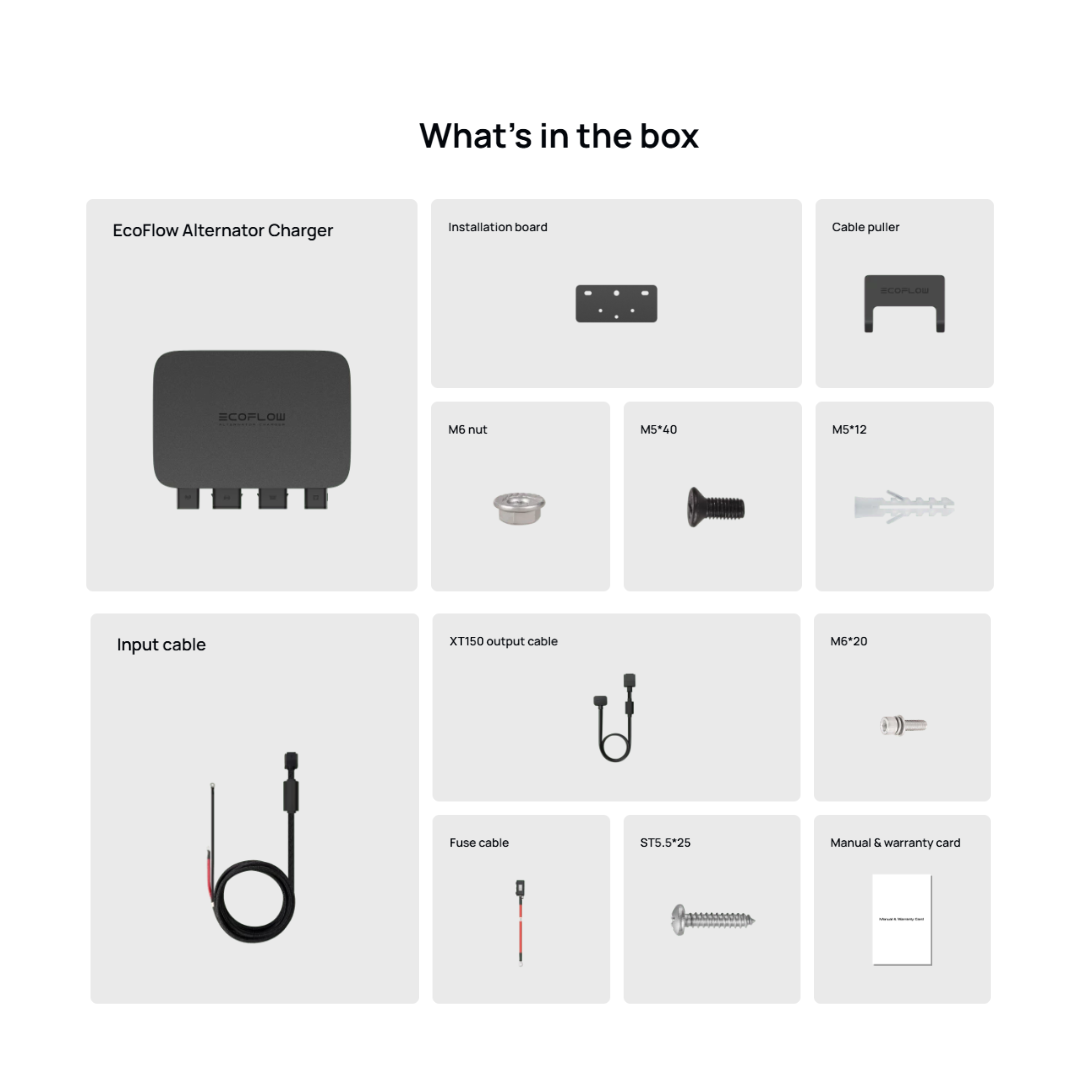

What’s Included in the Box:

1. EcoFlow Alternator Charger
2. Installation Board
3. Cable Puller
4. M6 and M5 Screws
5. Input Cable
6. XT150 Output Cable
7. Fuse Cable
8. Manual & Warranty Card

The EcoFlow 800W Alternator Charger is a high-performance charging solution tailored for road trips, RV life, and long journeys. With its fast, safe, and flexible design, it keeps power stations charged while providing essential support for vehicle and RV batteries.
