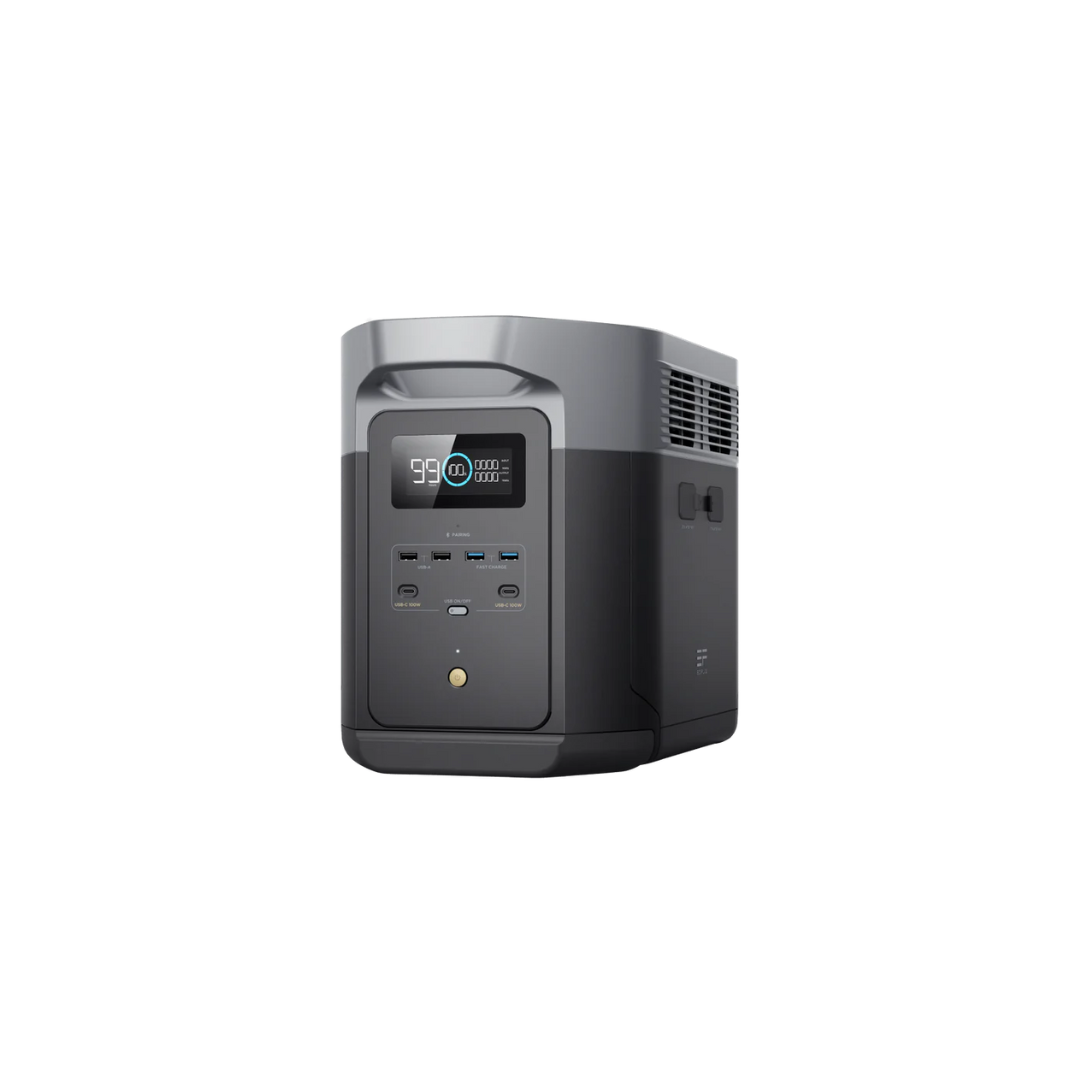

EcoFlow DELTA 2 Max Power Station 2048Wh | 4800W

EcoFlow DELTA 2 Max Portable Power Station Specifications

This power station is designed for extensive use with flexible charging options, long-lasting battery life, and high power output, making it suitable for home backup, outdoor adventures, and heavy-duty applications. Its advanced battery management and durability ensure it’s built to withstand frequent use and challenging environments.

General Features

• Expandable Capacity:
  • Base capacity of 2048Wh
  • Expandable up to 6144Wh by connecting up to two DELTA 2 Max Smart Extra Batteries

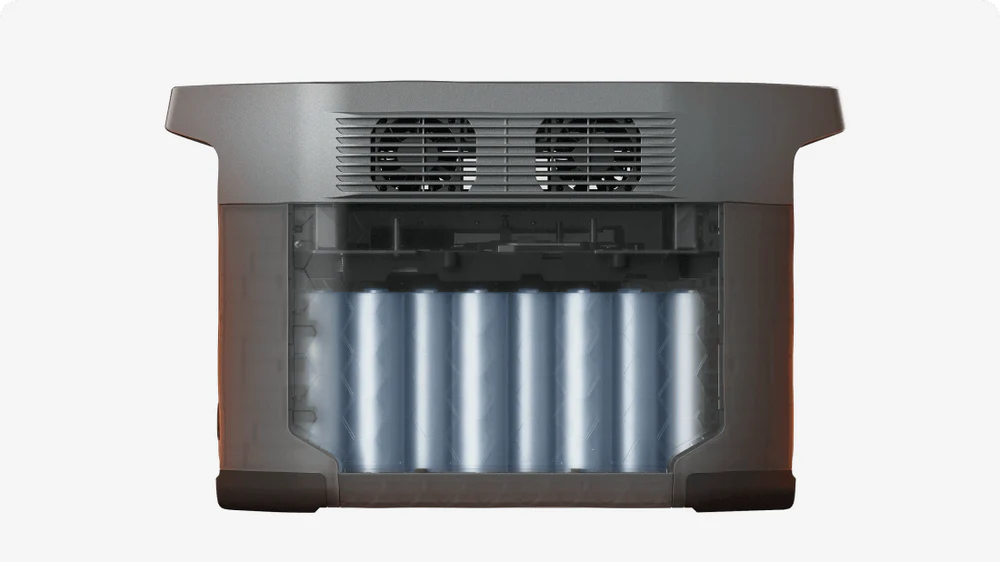

• Battery Chemistry: LFP (LiFePO4) for long-lasting durability
  • Cycle Life: 3000 cycles to 80% capacity
  • Expected Lifespan: Up to 10 years of daily use

Power Output

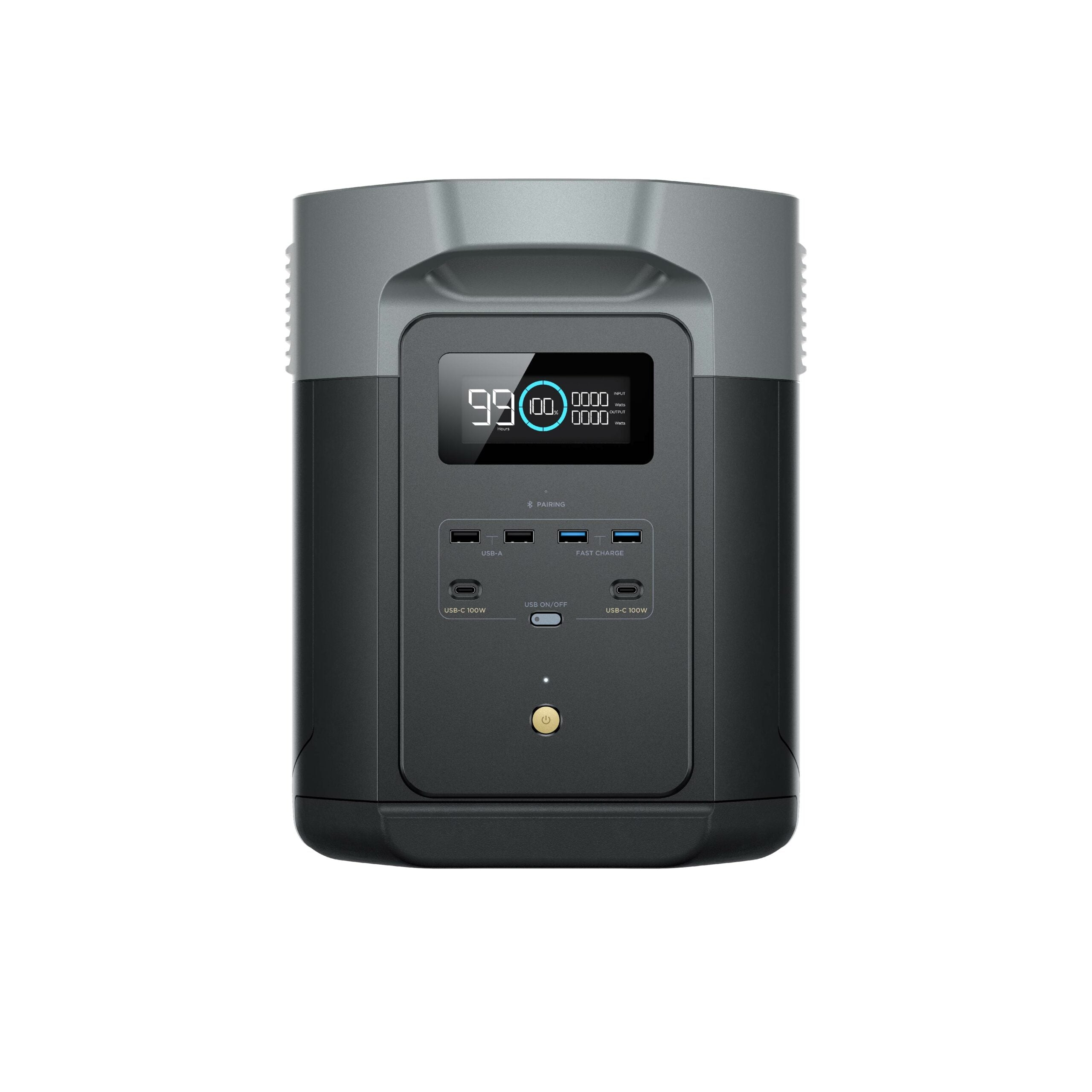

• AC Output:

  • Total Output: 2400W (surge up to 4800W)
  • X-Boost Mode: Allows up to 3100W to power high-demand appliances
  • Outlets: 4 AC outlets

• USB-A Output:

  • Standard USB-A: 2 ports, 5V, 2.4A, 12W max per port
  • USB-A Fast Charge: 2 ports, 5V/2.4A, 9V/2A, 12V/1.5A, 18W max

• USB-C Output:

  • 2 ports, 5/9/12/15/20V, 5A, 100W max per port

• Car Power Output:

  • 1 port, 12.6V, 10A, 126W max

• DC5521 Output:

  • 2 ports, 12.6V, 3A, 38W max per port

Charging Options

• AC Charging (X-Stream Fast Charge):

  • Max input of 2300W, 10A
  • Can charge to 80% in just 53 minutes with AC input

• Solar Charging:

  • Supports up to 1000W total from solar panels
  • Input Voltage: 11-60V, 15A, single port 500W; dual port 1000W
  • Charges fully in approximately 2.3 hours with a 1000W solar setup

• Car Charging:

  • Compatible with 12V/24V battery, up to 8A

Advanced Charging & Energy Management

• Dual Solar Input System:
  • Independent MPPT (Maximum Power Point Tracking) technology per port, maximizing solar capture
  • 99% MPPT efficiency to optimize energy generation
• X-Stream Dual Charging:
  • Combines AC and solar input, reaching up to 2400W for rapid charging (80% in 43 mins)

In-App Customizable Energy Management

• Energy Management:
  • Customizable charging preferences (AC vs. solar)
  • Tracks input/output power, battery status, and usage patterns to help reduce energy costs
  • Remote control and monitoring via Wi-Fi and Bluetooth through the EcoFlow app

Physical Design & Durability

• Construction:
  • Sturdy one-piece design with reinforced ports
  • UL94-5VA fire-resistant casing

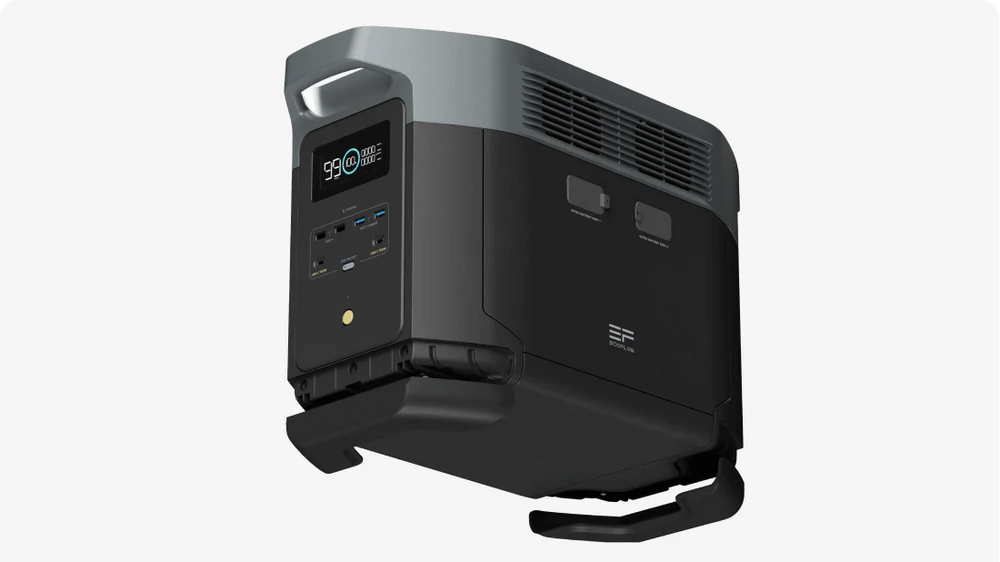

  • Rubber anti-slip base for added stability and durability
• Quiet Operation:
  • Operates as quietly as 30 dB under low input and up to 500W output, ideal for indoor use
• Portable & Lightweight:
  • 50 lbs (23 kg)
  • Dimensions: 497 × 242 × 305 mm (19.6 × 9.5 × 12 in)

Compatibility

• EcoFlow PowerStream Balcony Solar System Compatible:
  • Connect with PowerStream microinverter for a grid-tied power supply
  • Up to 800W solar input for home backup
• Versatile Usage: Supports various applications, including home backup, outdoor use, RV, DIY projects, filmmaking, and photography

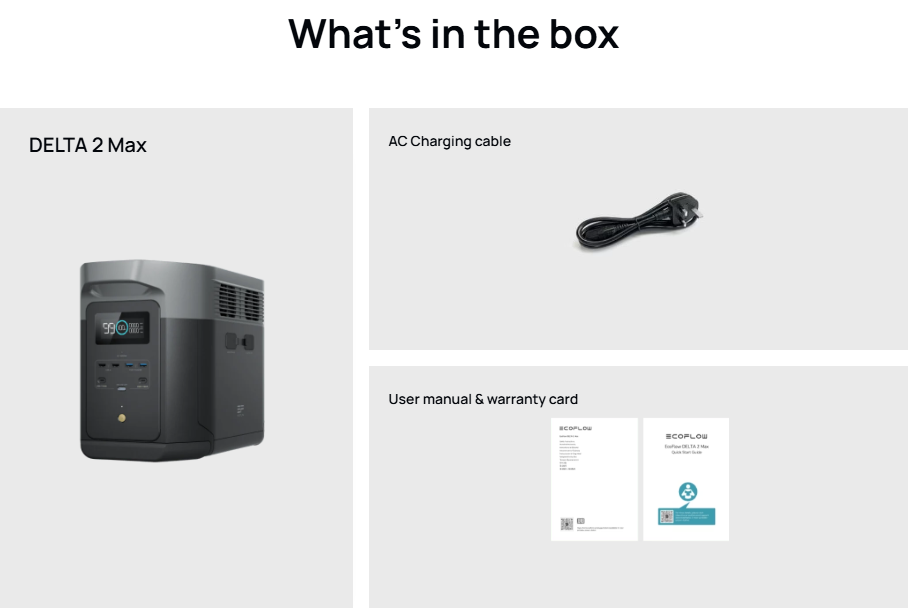

What’s Included in the Box

• DELTA 2 Max Portable Power Station
• AC Charging Cable
• Car Charging Cable
• DC5521 to DC5525 Cable
• User Manual & Warranty Card

Warranty

• Extensive 5-Year Warranty
