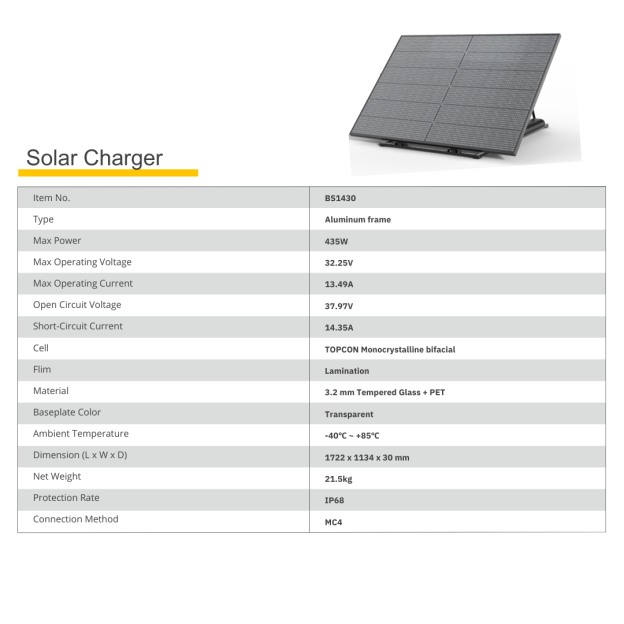

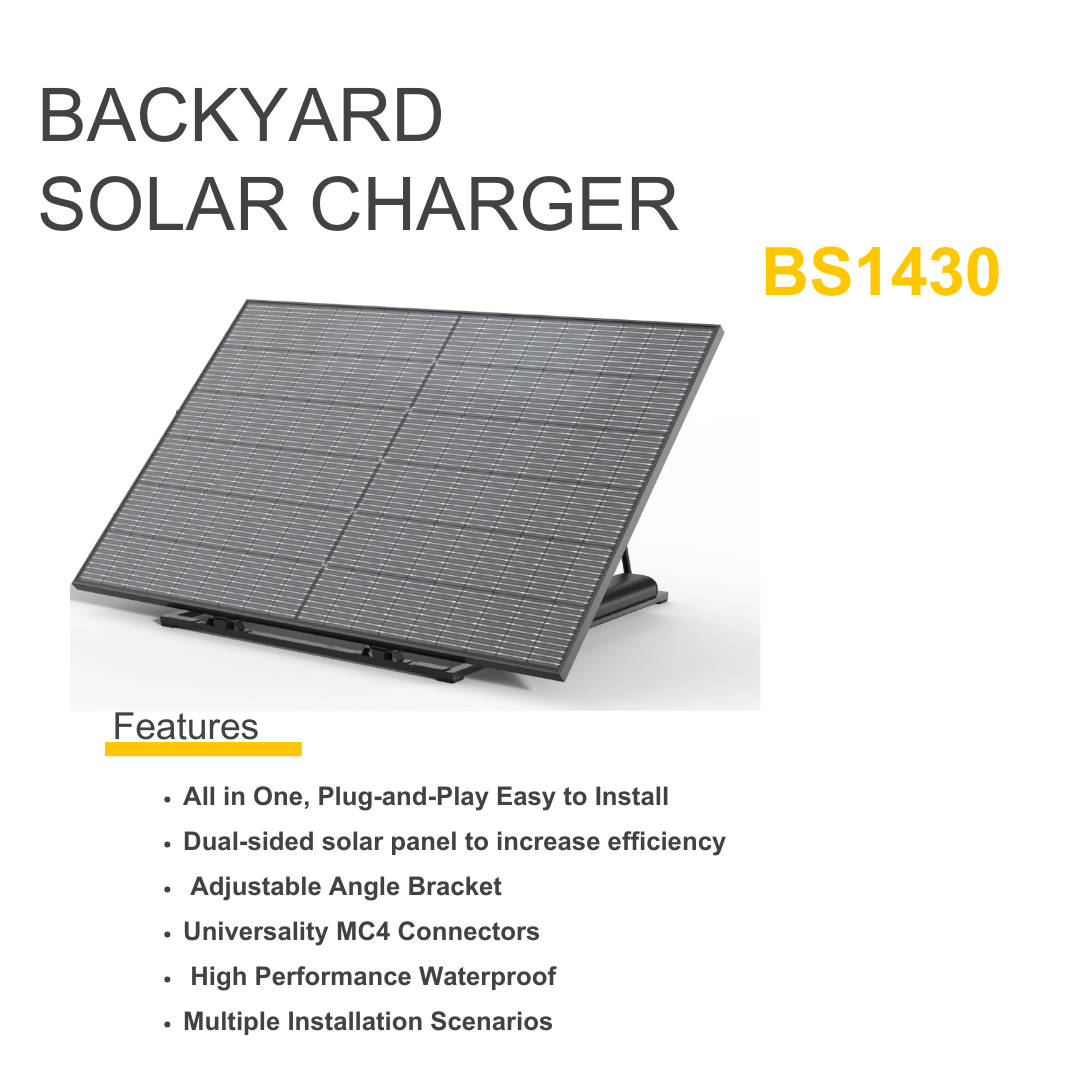

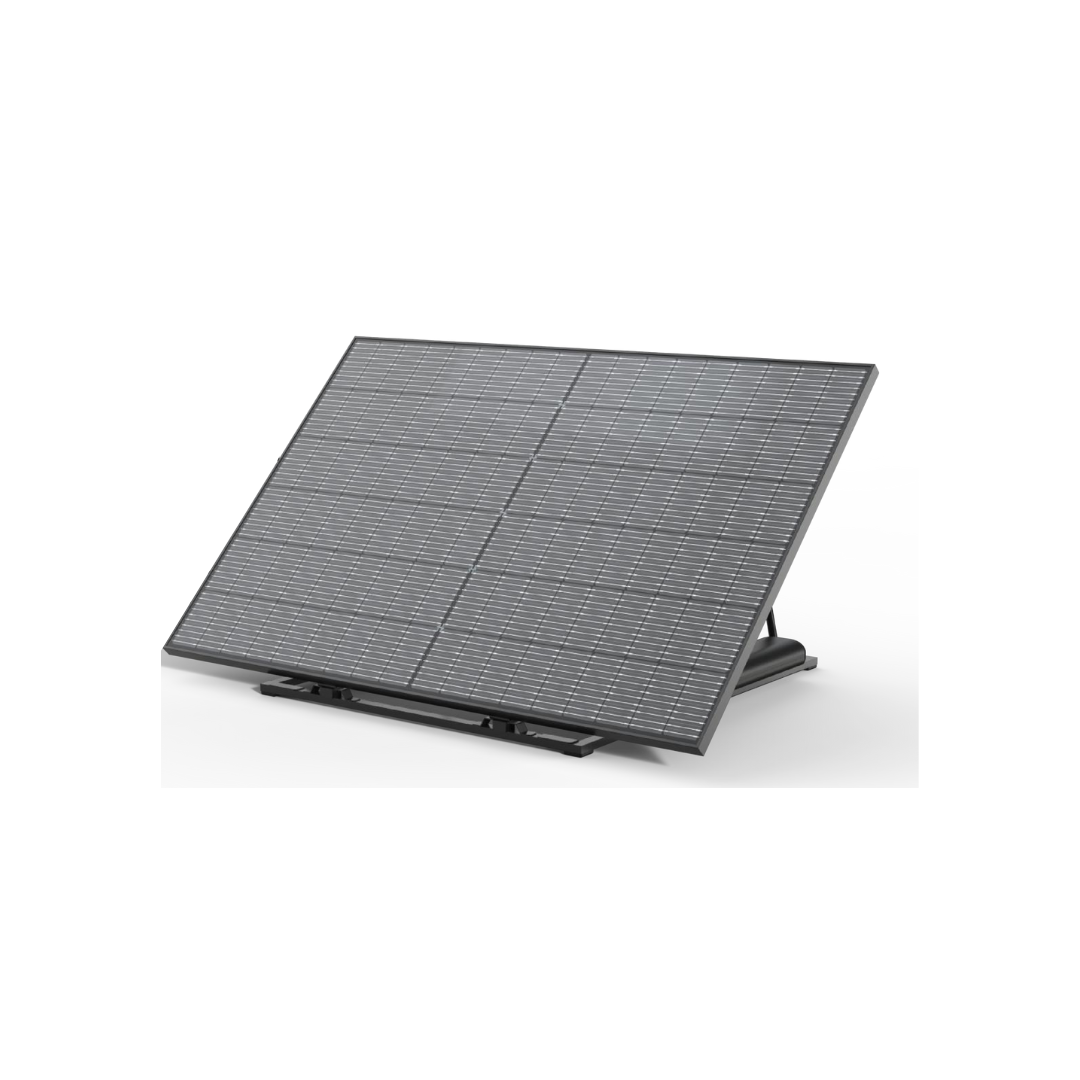

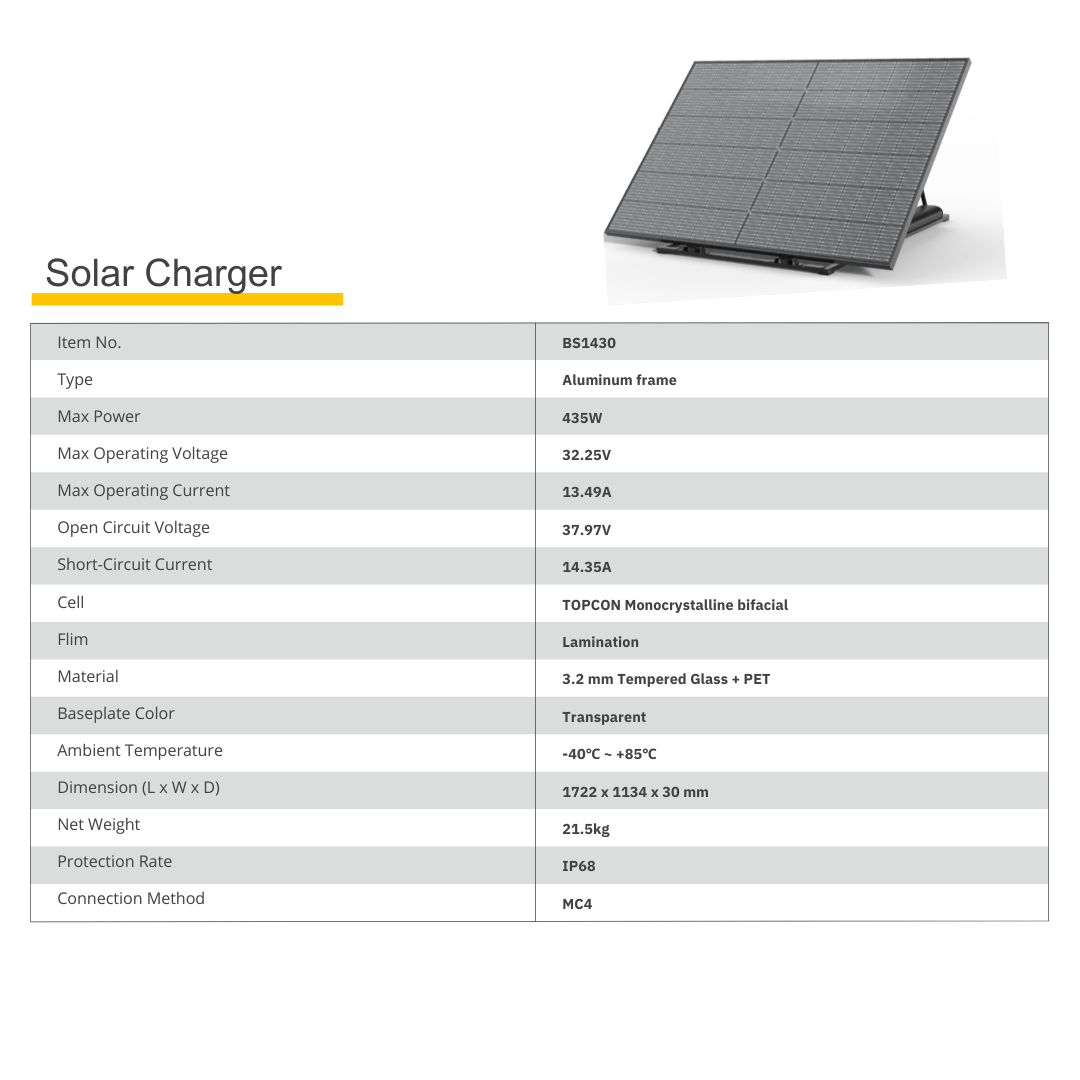

NEG Backyard Solar Charger BS1430
-
Type: Aluminum frame
-
Capacity: 435W (Max Power)
-
Max Voltage: 37.97V (Open Circuit Voltage)
-
Max Operating Voltage: 32.25V
-
Max Operating Current: 13.49A
-
Short-Circuit Current: 14.35A
-
Cell: TOPCON Monocrystalline bifacial
-
Film: Lamination
-
Material: 3.2mm Tempered Glass + PET
-
Baseplate Color: Transparent
-
Ambient Temperature: -40°C to +85°C
-
Dimension (L × W × D): 1722 × 1134 × 30 mm
-
Net Weight: 21.5kg
-
Protection Rate: IP68
-
Connection Method: MC4
-

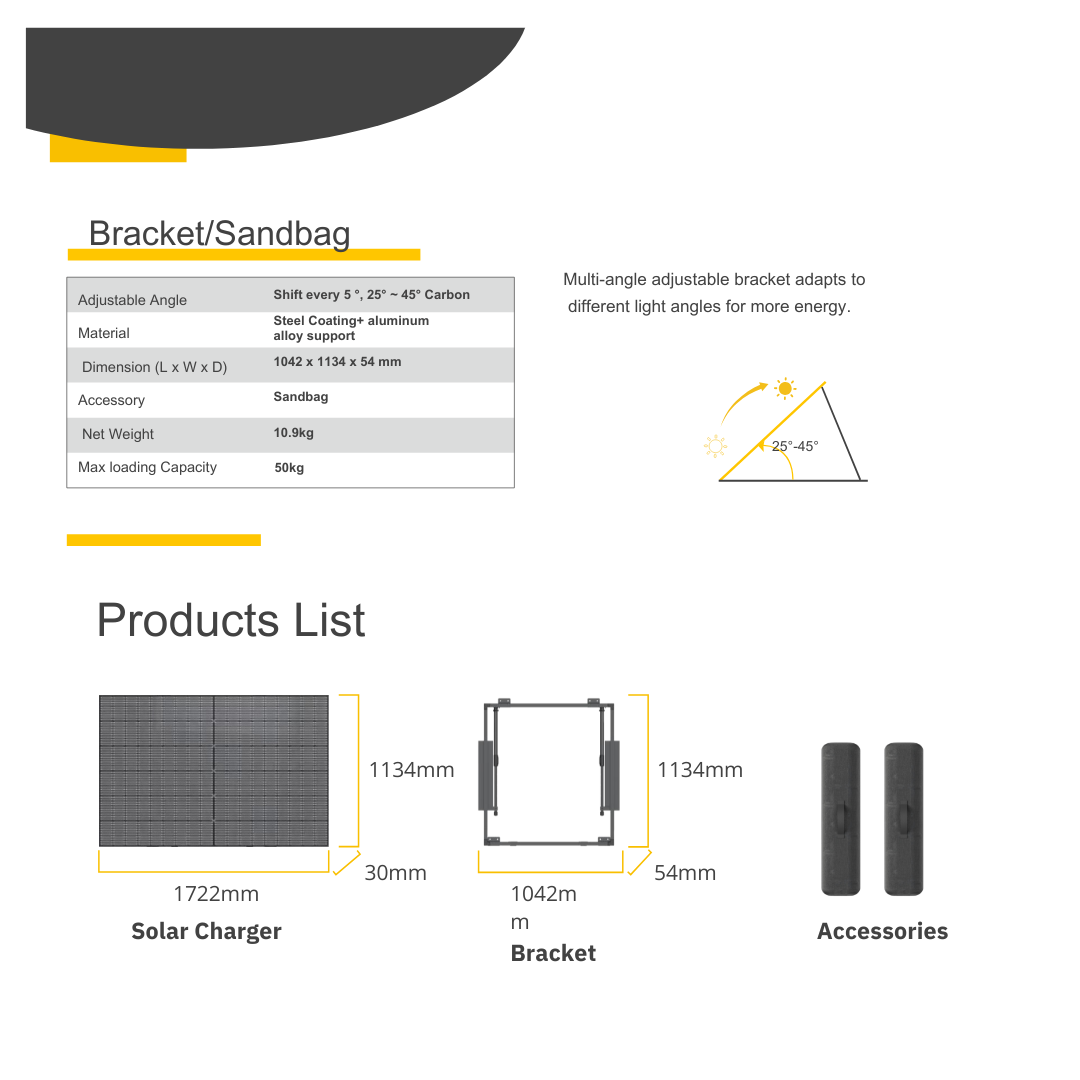

Bracket Adjustable Angle: 25° to 45° (shift every 5°)
-
Bracket Material: Carbon Steel Coating + Aluminum Alloy Support
-
Bracket Dimension (L × W × D): 1042 × 1134 × 54 mm
-
Bracket Accessory: Sandbag
-
Bracket Net Weight: 10.9kg
-
Bracket Max Loading Capacity: 50kg
-
Suitable For: Backyard use, multiple installation scenarios, plug-and-play setups; ideal for powering small off-grid systems, camping, or emergency backup due to its high performance, waterproof IP68 rating, and adjustable angle bracket for optimal sunlight capture.
-
Warranty: 1 year
