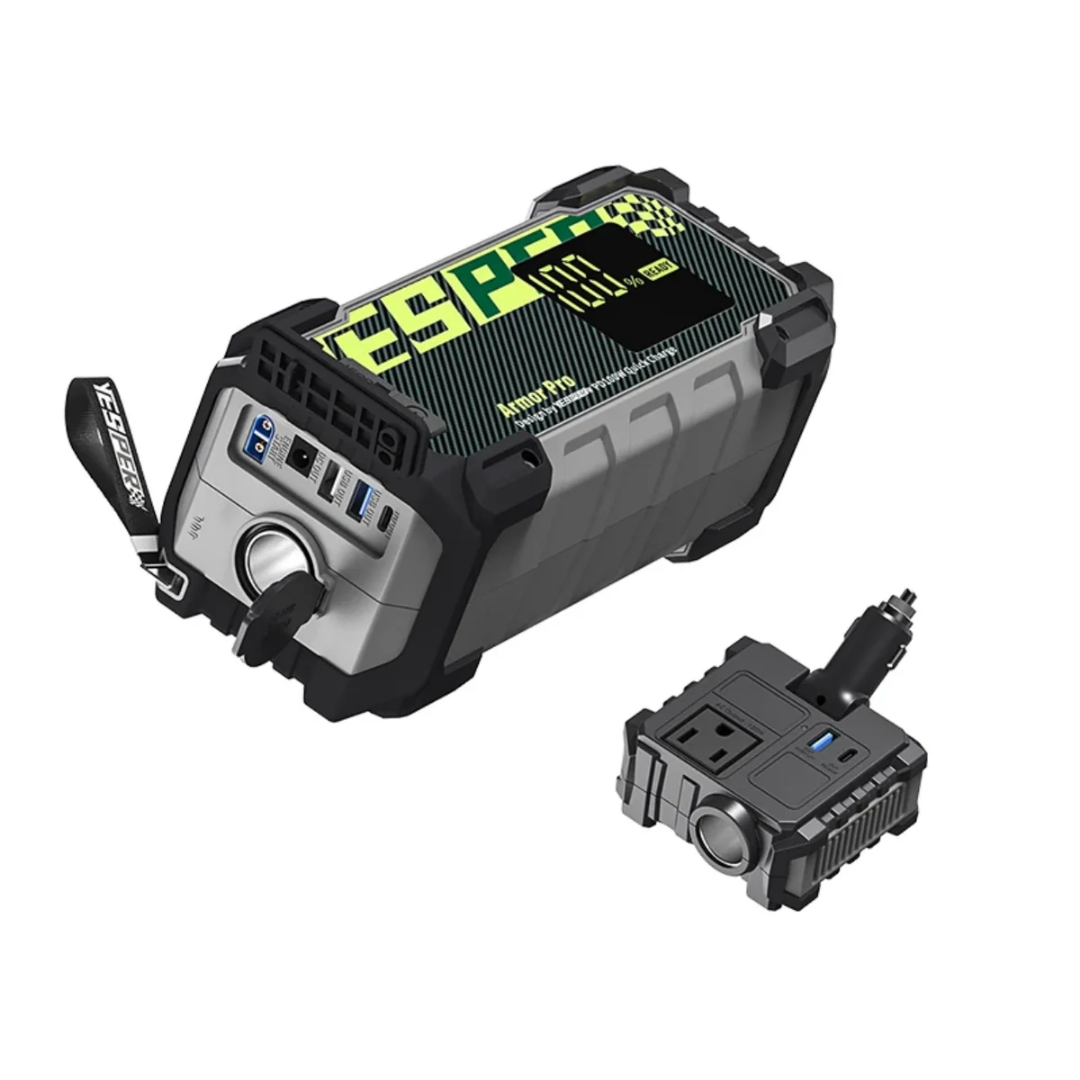

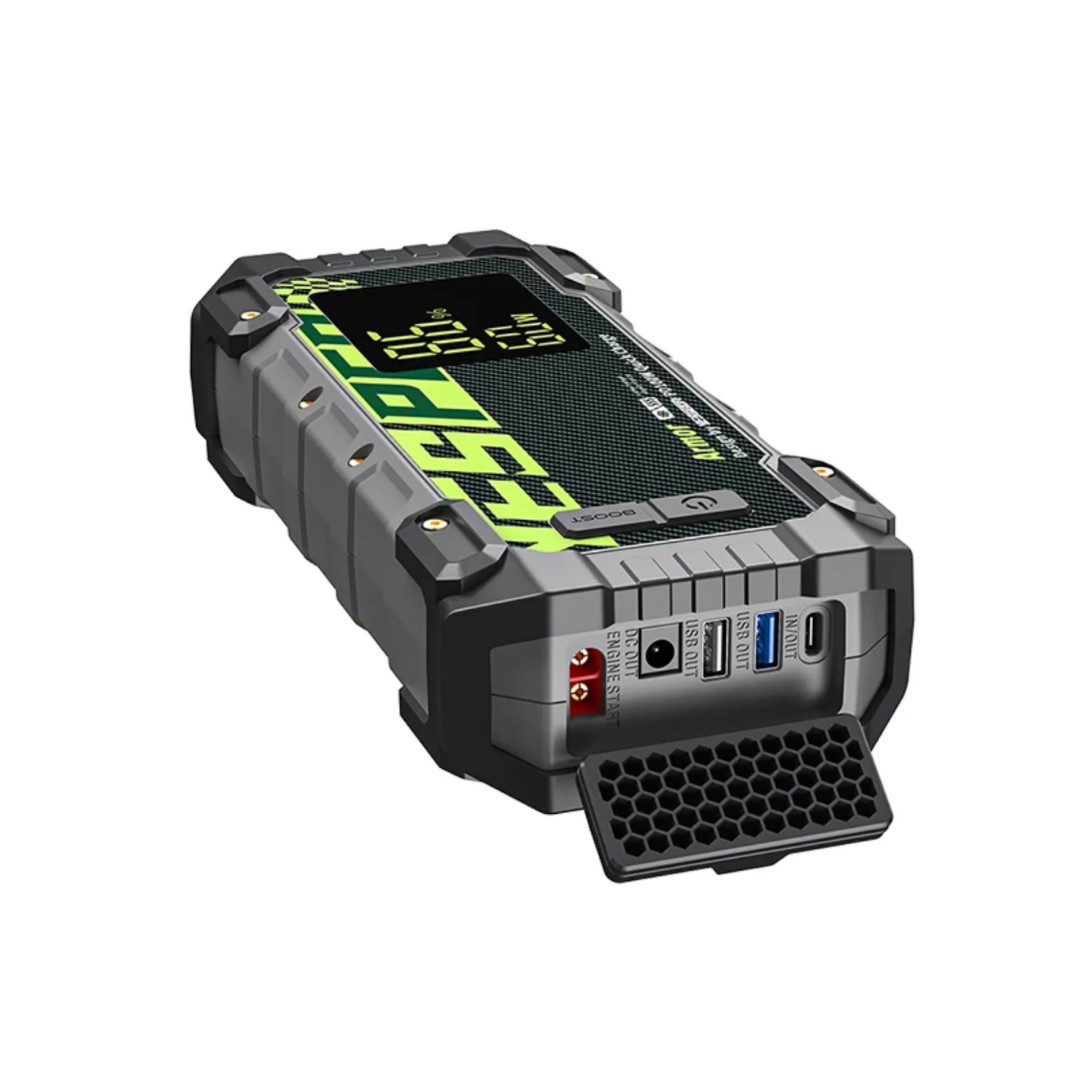

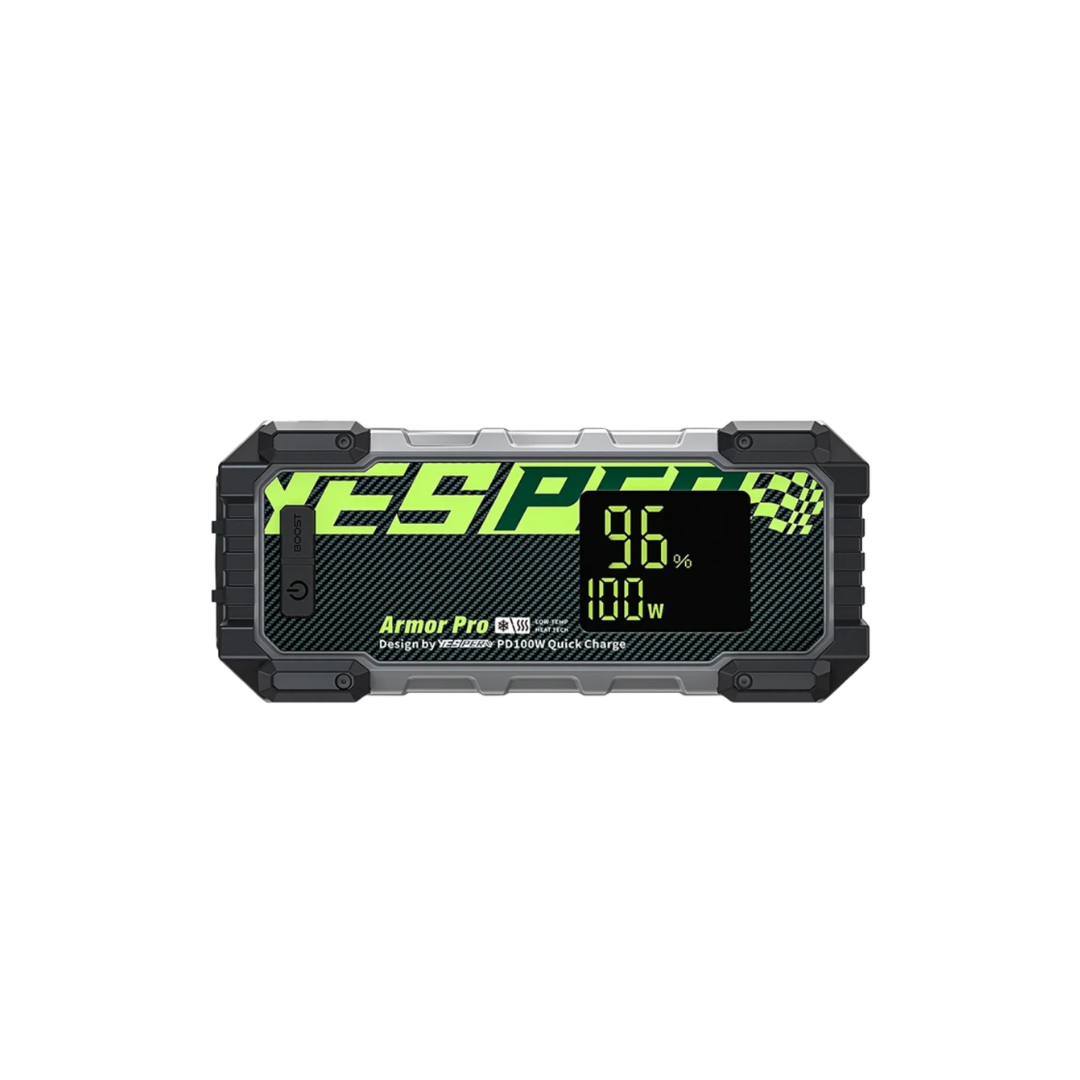

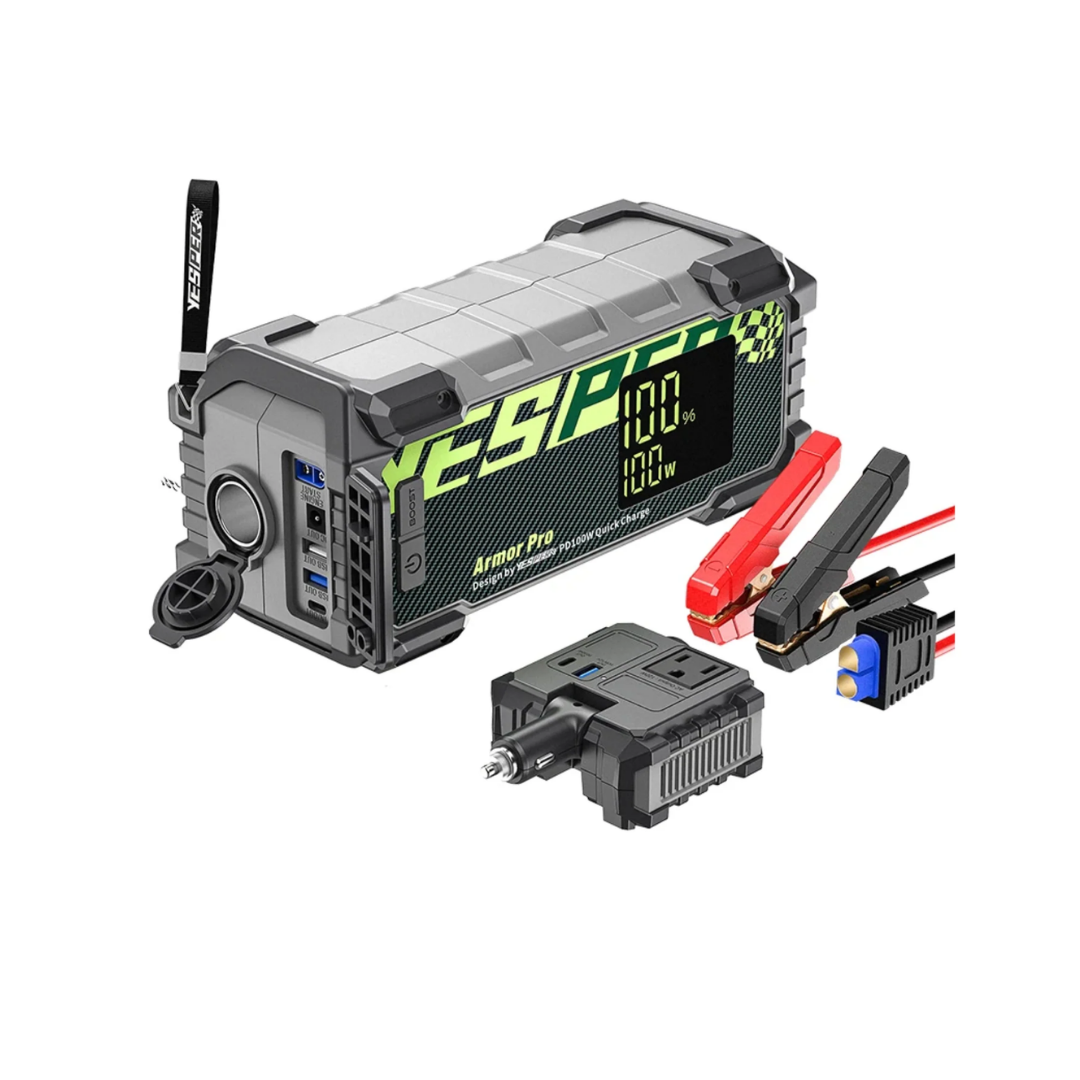

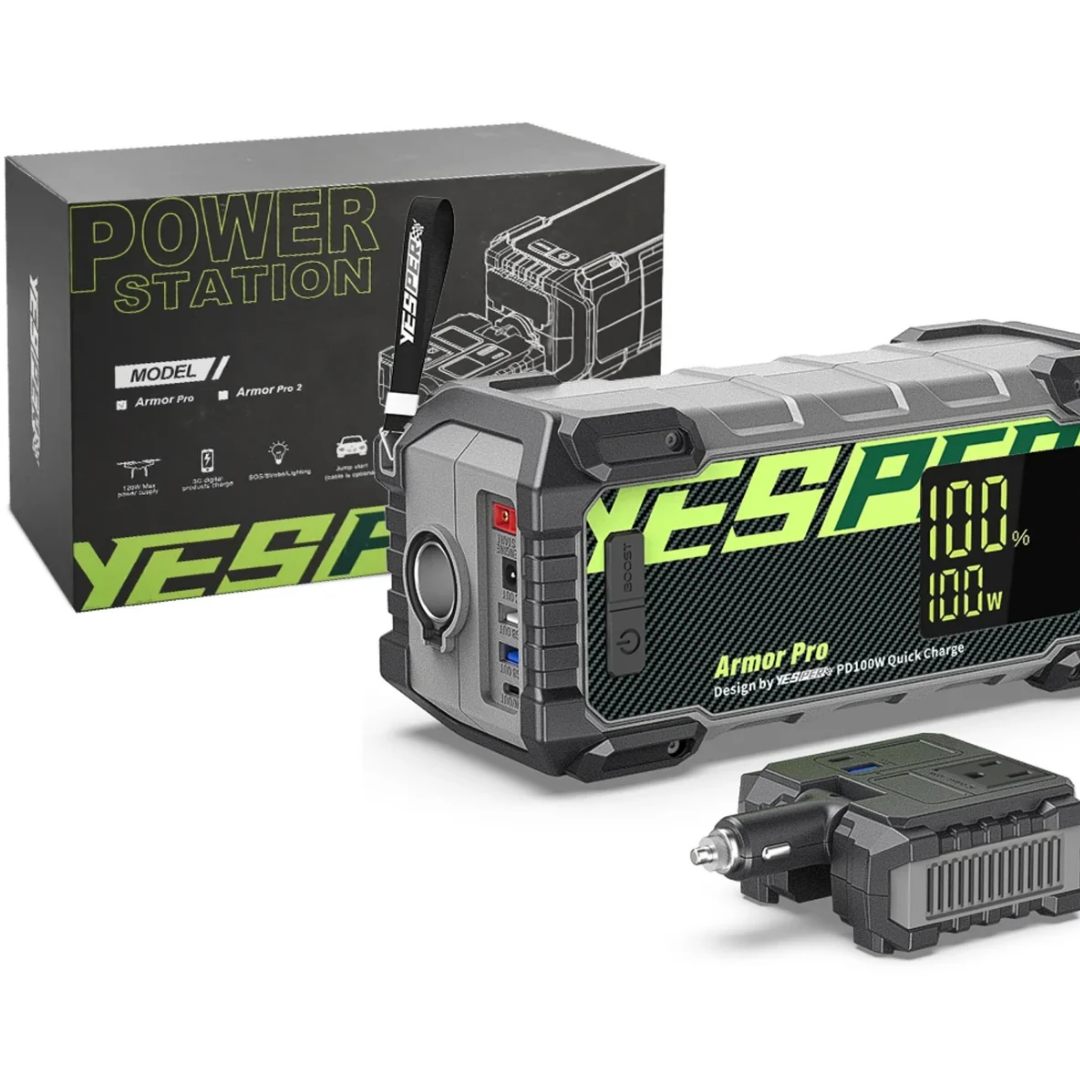

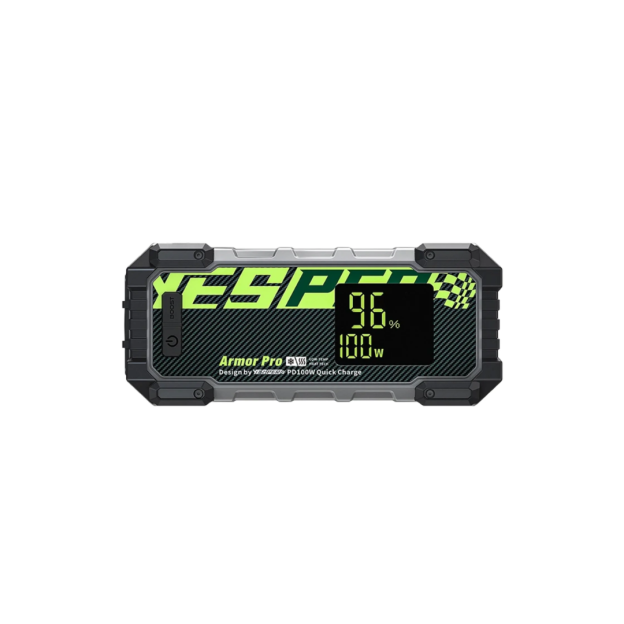

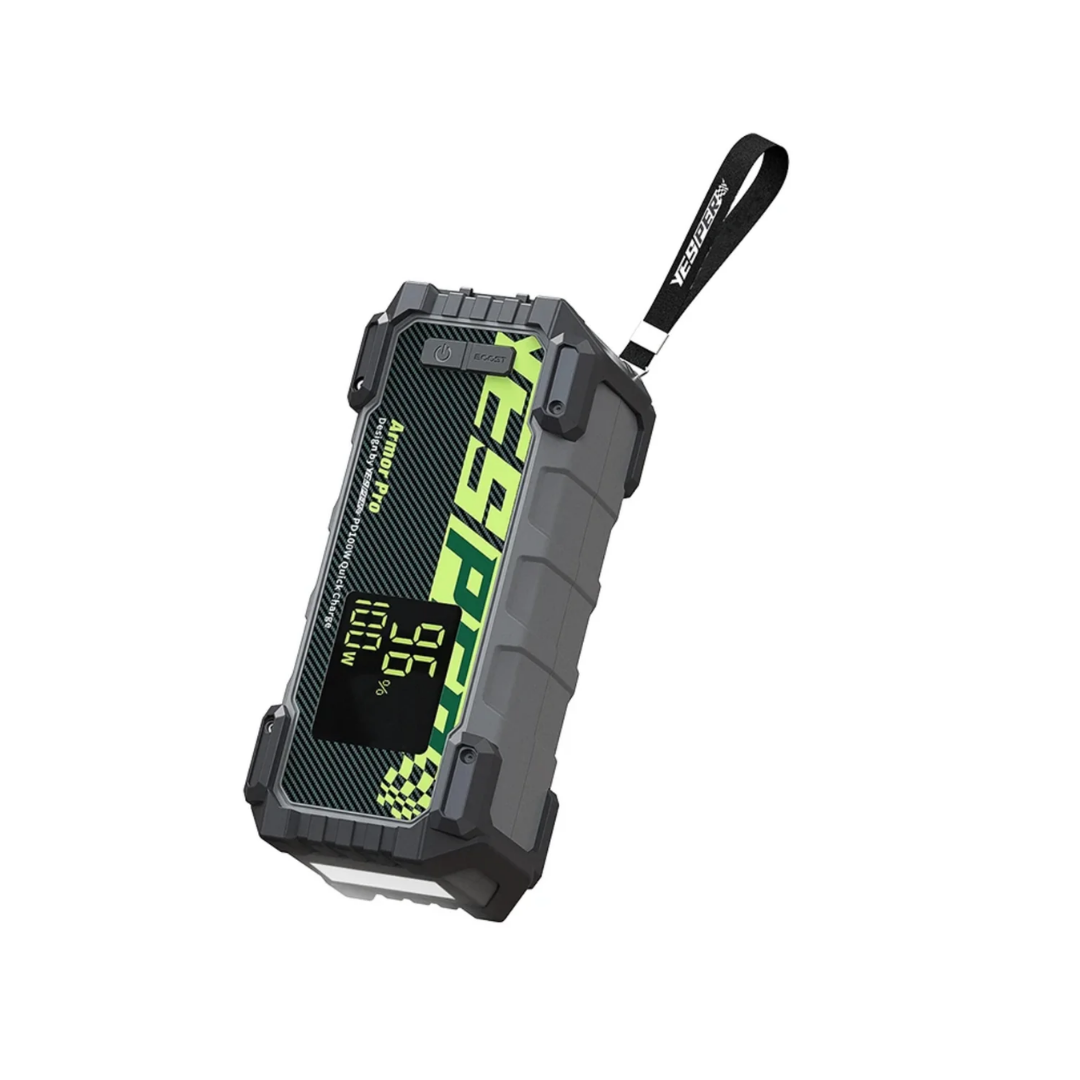

YESPER Armor Pro Power Startion with Jump Starter 240Wh

PRODUCT SPECIFICATION

MODEL: Armor Pro
CAPACITY: 240Wh
PEAK CURRENT: 2500A

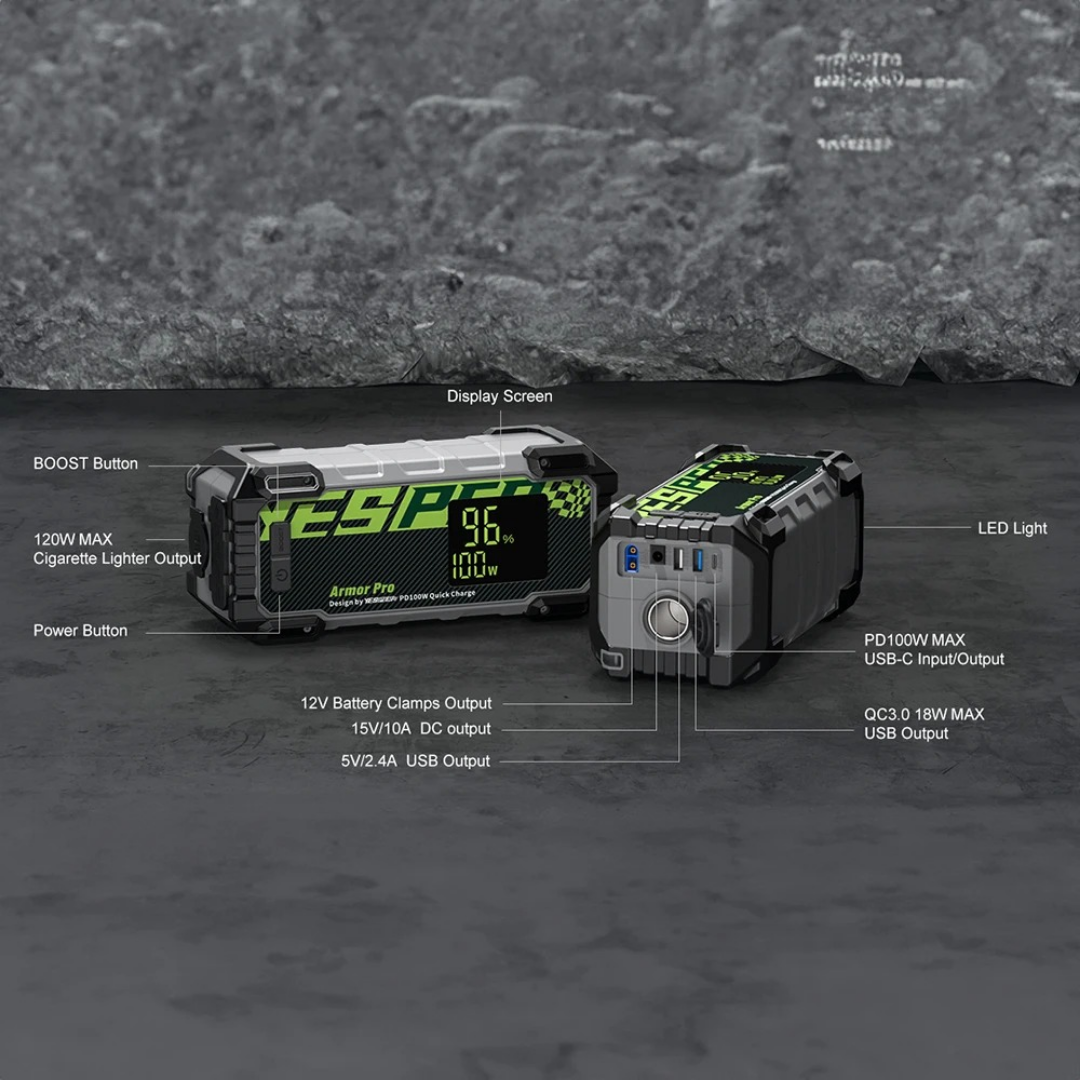

USB-C IN/OUT: PD100W Max (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A);
Output : QC3.0 18W Max (5V/3A, 9V/2A, 12V/1.5A)
5V/2.4A, 12V jump start
Output DC: 15V/10A
Operating temperature: -20°C ~ 60°C
Discharge temperature: 0°C ~ 45°C
Dimensions: 238 × 103 × 98 mm (9.37 × 4.06 × 3.86 in)
Weight: 2.2 kg (4.85 lb)
Warranty: 1 Year

Instructions & Troubleshooting

Error Message	Cause	Error Solution
X + Beeping	Reverse connection	Please correct the connection between battery clamps and battery terminals.
READY (blinks)+Beeping	Vehicle battery is completely dead	Press "BOOST" 2- 3s, when "READY" icon is solid, then start the vehicle within 30s.
"1" + Beeping	The temperature of jump starter is too low or high.	Restore the temperature of jump starter to 32°F - 113°F.
"2" + Beeping	Over current protection	Stop starting your vehicle, protection mode will disappear after 30s.
"3" + Beeping	Non-stop starts vehicles more than 4 times within 10mins, it entered safe mode.	Stop starting your vehicle, safe mode will disappear after 10mins.

WARNING:

1. Do not disassemble, crush, heat above 140°F to avoid accident.
1. Read user manual carefully before using this device. User manual has described all safety information. When used improperly or against our recommended use, it may result in injury or property loss.
